Intelligent Traffic Signal For
Prioritized Vehicles Using WSN
Presented by
T.V.N.VASISTA

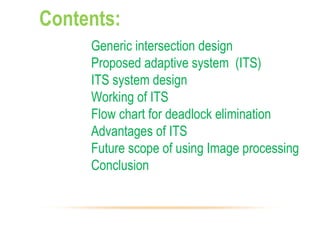

Contents:
Generic intersection design
Proposed adaptive system (ITS)
ITS system design
Working of ITS

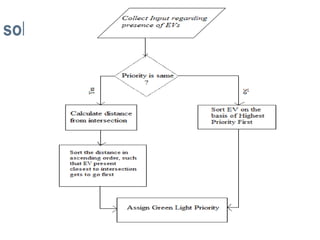

Flow chart for deadlock elimination
Advantages of ITS
Future scope of using Image processing
Conclusion
Generic intersection design

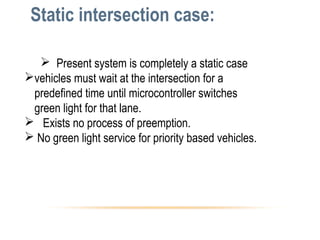

Static intersection case:
 Present system is completely a static case
vehicles must wait at the intersection for a
predefined time until microcontroller switches
green light for that lane.
 Exists no process of preemption.
 No green light service for priority based vehicles.

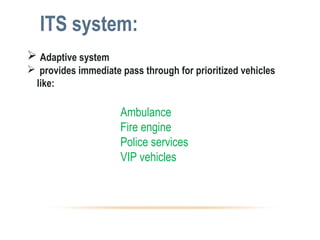

ITS system:
 Adaptive system
 provides immediate pass through for prioritized vehicles
like:
Ambulance
Fire engine
Police services
VIP vehicles

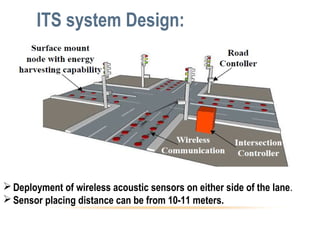

ITS system Design:
d
Deployment of wireless acoustic sensors on either side of the lane.
Sensor placing distance can be from 10-11 meters.

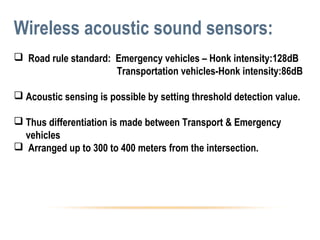

Wireless acoustic sound sensors:
 Road rule standard: Emergency vehicles  Honk intensity:128dB
Transportation vehicles-Honk intensity:86dB
 Acoustic sensing is possible by setting threshold detection value.
 Thus differentiation is made between Transport & Emergency
vehicles
 Arranged up to 300 to 400 meters from the intersection.

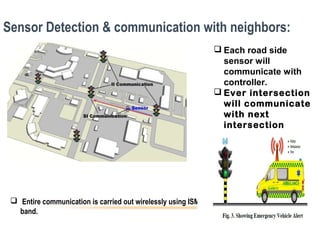

Sensor Detection & communication with neighbors:
 Each road side
sensor will
communicate with
controller.
 Ever intersection
will communicate
with next
intersection
 Entire communication is carried out wirelessly using ISM
band.

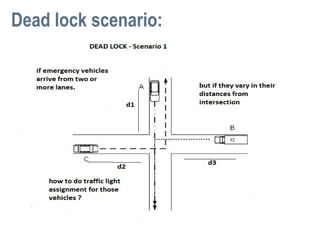

Dead lock scenario:
solution :

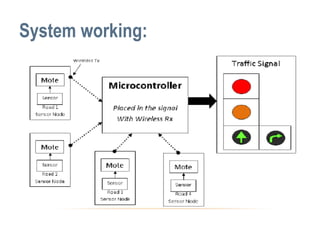

System working:

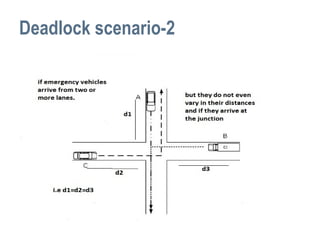

Deadlock scenario-2

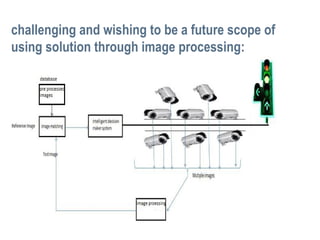

challenging and wishing to be a future scope of
using solution through image processing:

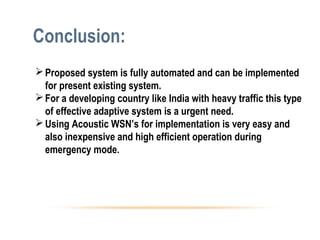

Conclusion:
Proposed system is fully automated and can be implemented
for present existing system.
For a developing country like India with heavy traffic this type
of effective adaptive system is a urgent need.
Using Acoustic WSNs for implementation is very easy and
also inexpensive and high efficient operation during
emergency mode.
15
Thank you
Any quires?
