2. About Me
@imksoo / Kirino Minato
とある基盤の技術者(エンジニア)
時々基盤構築、時々基盤運用、時々運用設計
とりあえずMicrosoft/EMC/HPサーバと声優好きなおたく
最近、おうちでOracle Solaris 11 Expressでストレージサーバ作ってます。
2

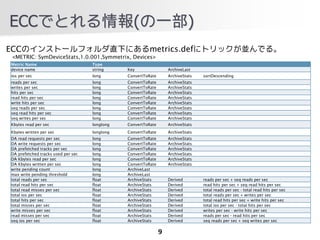

9. ECCでとれる情報(の一部)
ECCのインストールフォルダ直下にあるmetrics.defにトリックが並んでる。
<METRIC: SymDeviceStats,1.0.001,Symmetrix, Devices>
Metric Name Type
device name string Key ArchiveLast
ios per sec long ConvertToRate ArchiveStats sortDescending
reads per sec long ConvertToRate ArchiveStats
writes per sec long ConvertToRate ArchiveStats
hits per sec long ConvertToRate ArchiveStats
read hits per sec long ConvertToRate ArchiveStats
write hits per sec long ConvertToRate ArchiveStats
seq reads per sec long ConvertToRate ArchiveStats
seq read hits per sec long ConvertToRate ArchiveStats
seq writes per sec long ConvertToRate ArchiveStats
Kbytes read per sec longlong ConvertToRate ArchiveStats
Kbytes written per sec longlong ConvertToRate ArchiveStats
DA read requests per sec long ConvertToRate ArchiveStats
DA write requests per sec long ConvertToRate ArchiveStats
DA prefetched tracks per sec long ConvertToRate ArchiveStats
DA prefetched tracks used per sec long ConvertToRate ArchiveStats
DA Kbytes read per sec long ConvertToRate ArchiveStats
DA Kbytes written per sec long ConvertToRate ArchiveStats
write pending count long ArchiveLast
max write pending threshold long ArchiveLast
total reads per sec float ArchiveStats Derived reads per sec + seq reads per sec
total read hits per sec float ArchiveStats Derived read hits per sec + seq read hits per sec
total read misses per sec float ArchiveStats Derived total reads per sec - total read hits per sec
total ios per sec float ArchiveStats Derived total reads per sec + writes per sec
total hits per sec float ArchiveStats Derived total read hits per sec + write hits per sec
total misses per sec float ArchiveStats Derived total ios per sec - total hits per sec
write misses per sec float ArchiveStats Derived writes per sec - write hits per sec
read misses per sec float ArchiveStats Derived reads per sec - read hits per sec
seq ios per sec float ArchiveStats Derived seq reads per sec + seq writes per sec
9

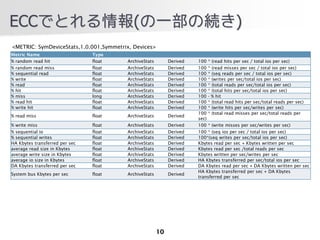

10. ECCでとれる情報(の一部の続き)
<METRIC: SymDeviceStats,1.0.001,Symmetrix, Devices>
Metric Name Type
% random read hit float ArchiveStats Derived 100 * (read hits per sec / total ios per sec)
% random read miss float ArchiveStats Derived 100 * (read misses per sec / total ios per sec)
% sequential read float ArchiveStats Derived 100 * (seq reads per sec / total ios per sec)
% write float ArchiveStats Derived 100 * (writes per sec/total ios per sec)
% read float ArchiveStats Derived 100 * (total reads per sec/total ios per sec)
% hit float ArchiveStats Derived 100 * (total hits per sec/total ios per sec)
% miss long ArchiveStats Derived 100 - % hit
% read hit float ArchiveStats Derived 100 * (total read hits per sec/total reads per sec)
% write hit float ArchiveStats Derived 100 * (write hits per sec/writes per sec)
100 * (total read misses per sec/total reads per
% read miss float ArchiveStats Derived
sec)
% write miss float ArchiveStats Derived 100 * (write misses per sec/writes per sec)
% sequential io float ArchiveStats Derived 100 * (seq ios per sec / total ios per sec)
% sequential writes float ArchiveStats Derived 100*(seq writes per sec/total ios per sec)
HA Kbytes transferred per sec float ArchiveStats Derived Kbytes read per sec + Kbytes written per sec
average read size in Kbytes float ArchiveStats Derived Kbytes read per sec /total reads per sec
average write size in Kbytes float ArchiveStats Derived Kbytes written per sec/writes per sec
average io size in Kbytes float ArchiveStats Derived HA Kbytes transferred per sec/total ios per sec
DA Kbytes transferred per sec float ArchiveStats Derived DA Kbytes read per sec + DA Kbytes written per sec
HA Kbytes transferred per sec + DA Kbytes
System bus Kbytes per sec float ArchiveStats Derived
transferred per sec
10

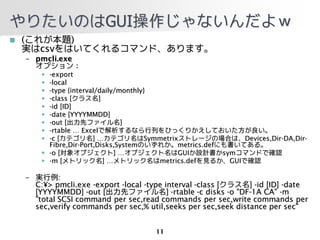

![やりたいのはGUI操作じゃないんだよｗ
? (これが本題)
実はcsvをはいてくれるコマンド、あります。
– pmcli.exe
オプション：
? -export
? -local
? -type {interval/daily/monthly}
? -class [クラス名]
? -id [ID]
? -date [YYYYMMDD]
? -out [出力先ファイル名]
? -rtable … Excelで解析するなら行列をひっくりかえしておいた方が良い。
? -c [カテゴリ名] …カテゴリ名はSymmetrixストレージの場合は、Devices,Dir-DA,Dir-
Fibre,Dir-Port,Disks,Systemのいずれか。metrics.defにも書いてある。
? -o [対象オブジェクト] …オブジェクト名はGUIか設計書かsymコマンドで確認
? -m [メトリック名] …メトリック名はmetrics.defを見るか、GUIで確認
– 実行例:
C:?> pmcli.exe -export -local -type interval -class [クラス名] -id [ID] -date
[YYYYMMDD] -out [出力先ファイル名] -rtable -c disks -o "DF-1A CA" -m
"total SCSI command per sec,read commands per sec,write commands per
sec,verify commands per sec,% util,seeks per sec,seek distance per sec"
11](https://image.slidesharecdn.com/20110611-lt-2-110611125601-phpapp01/85/2011-06-11-sfstudy-ECC-11-320.jpg)
