2lab xray parts
- 1. Engr Khaleeque Ahmed Sir syed university of engineering & technology Karachi

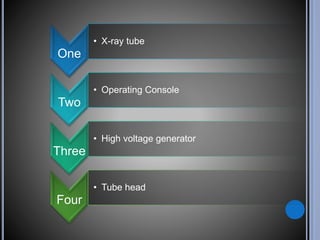

- 2. One X-ray tube Two Operating Console Three High voltage generator Four Tube head

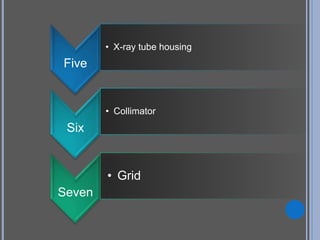

- 3. Five X-ray tube housing Six Collimator Seven Grid

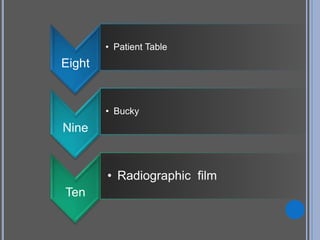

- 4. Eight Patient Table Nine Bucky Ten Radiographic film

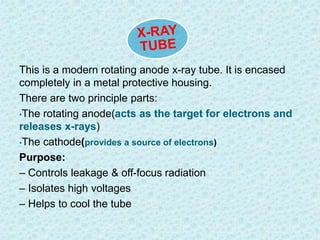

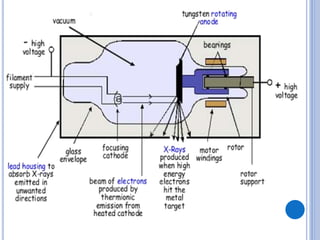

- 5. This is a modern rotating anode x-ray tube. It is encased completely in a metal protective housing. There are two principle parts: The rotating anode(acts as the target for electrons and releases x-rays) The cathode(provides a source of electrons) Purpose: Controls leakage & off-focus radiation Isolates high voltages Helps to cool the tube

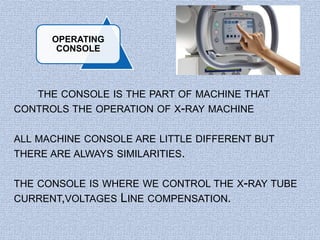

- 7. OPERATING CONSOLE THE CONSOLE IS THE PART OF MACHINE THAT CONTROLS THE OPERATION OF X-RAY MACHINE ALL MACHINE CONSOLE ARE LITTLE DIFFERENT BUT THERE ARE ALWAYS SIMILARITIES. THE CONSOLE IS WHERE WE CONTROL THE X-RAY TUBE CURRENT,VOLTAGES LINE COMPENSATION.

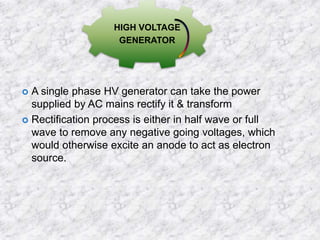

- 8. HIGH VOLTAGE GENERATOR A single phase HV generator can take the power supplied by AC mains rectify it & transform Rectification process is either in half wave or full wave to remove any negative going voltages, which would otherwise excite an anode to act as electron source.

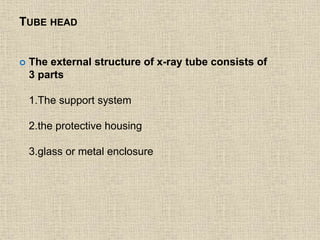

- 9. TUBE HEAD The external structure of x-ray tube consists of 3 parts 1.The support system 2.the protective housing 3.glass or metal enclosure

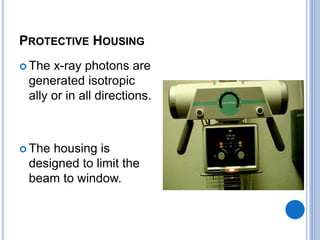

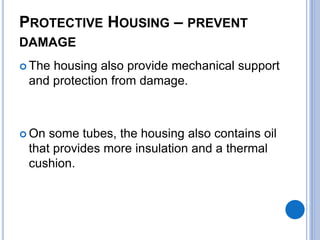

- 10. PROTECTIVE HOUSING The x-ray photons are generated isotropic ally or in all directions. The housing is designed to limit the beam to window.
- 11. PROTECTIVE HOUSING PREVENT DAMAGE The housing also provide mechanical support and protection from damage. On some tubes, the housing also contains oil that provides more insulation and a thermal cushion.

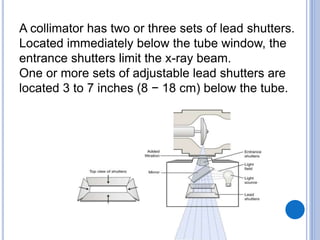

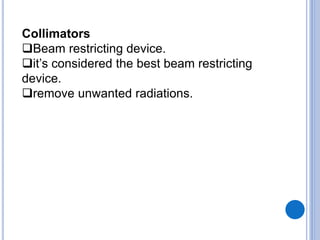

- 12. Collimators Beam restricting device. its considered the best beam restricting device. remove unwanted radiations.
- 13. A collimator has two or three sets of lead shutters. Located immediately below the tube window, the entrance shutters limit the x-ray beam. One or more sets of adjustable lead shutters are located 3 to 7 inches (8 18 cm) below the tube.
- 14. GRID ITS MADE UP OF LEAD MATERIAL ITS INSERTED B/W PATIENT AND THE FILM PURPOSE REDUCE THE SCATTERED RADIATION IMPROVE IMAGE CONTRAST.
- 15. X-RAY TABLES OR PATIENT TABLES CHARACTERISTICS RADIOLUCENT MATERIAL EASILY CLEANED SCRATCH RESISTANT BUCKY TRAY BUCKY SLOT COVER GRID
- 16. BUCKY A BUCKY IS TYPICALLY USED FOR TABLE OR WALL MOUNTED X-RAY SYSTEMS AND HOLDS THE X-RAY CASSETTE AND GRID. A BUCKY IS A DEVICE FOUND UNDERNEATH THE EXAM TABLE, A DRAWER LIKE DEVICE THAT THE CASSETTE AND GRID IS SLID INTO BEFORE SHOOTING X-RAY.
- 18. THANK U!!!!!
