Community Eco-Drone Workshop March 2016

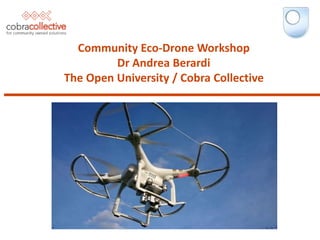

- 1. Community Eco-Drone Workshop Dr Andrea Berardi The Open University / Cobra Collective

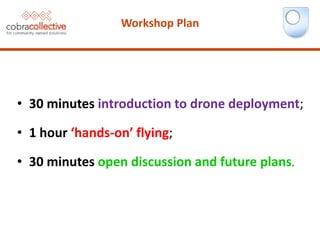

- 2. 30 minutes introduction to drone deployment; 1 hour hands-on flying; 30 minutes open discussion and future plans. Workshop Plan

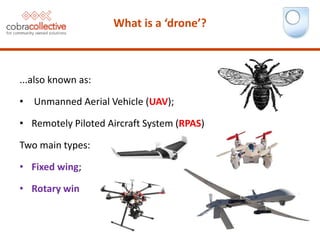

- 3. ...also known as: Unmanned Aerial Vehicle (UAV); Remotely Piloted Aircraft System (RPAS) Two main types: Fixed wing; Rotary wing. What is a drone?

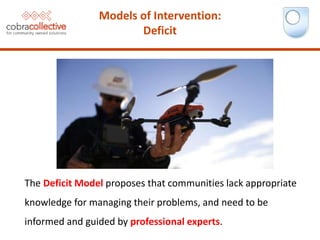

- 4. The Deficit Model proposes that communities lack appropriate knowledge for managing their problems, and need to be informed and guided by professional experts. Models of Intervention: Deficit

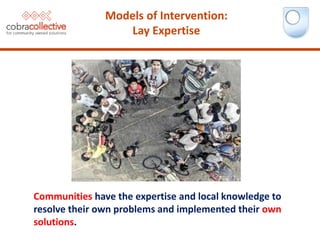

- 5. Communities have the expertise and local knowledge to resolve their own problems and implemented their own solutions. Models of Intervention: Lay Expertise

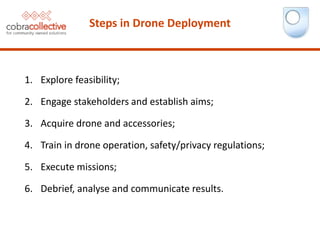

- 6. 1. Explore feasibility; 2. Engage stakeholders and establish aims; 3. Acquire drone and accessories; 4. Train in drone operation, safety/privacy regulations; 5. Execute missions; 6. Debrief, analyse and communicate results. Steps in Drone Deployment

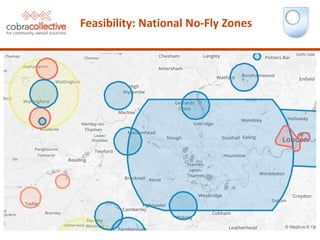

- 7. Feasibility: National No-Fly Zones

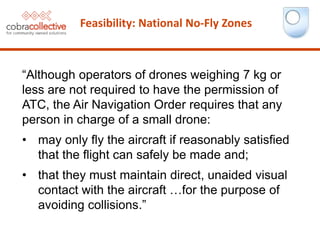

- 8. Feasibility: National No-Fly Zones Although operators of drones weighing 7 kg or less are not required to have the permission of ATC, the Air Navigation Order requires that any person in charge of a small drone: may only fly the aircraft if reasonably satisfied that the flight can safely be made and; that they must maintain direct, unaided visual contact with the aircraft for the purpose of avoiding collisions.

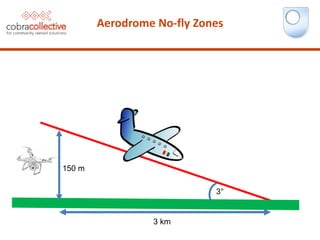

- 9. Aerodrome No-fly Zones 3属 150 m 3 km

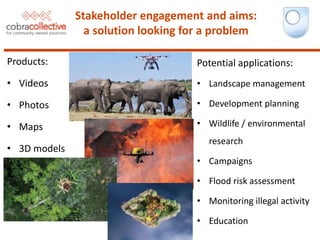

- 10. Potential applications: Landscape management Development planning Wildlife / environmental research Campaigns Flood risk assessment Monitoring illegal activity Education Stakeholder engagement and aims: a solution looking for a problem Products: Videos Photos Maps 3D models

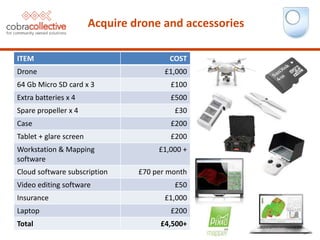

- 11. Acquire drone and accessories ITEM COST Drone 贈1,000 64 Gb Micro SD card x 3 贈100 Extra batteries x 4 贈500 Spare propeller x 4 贈30 Case 贈200 Tablet + glare screen 贈200 Workstation & Mapping software 贈1,000 + Cloud software subscription 贈70 per month Video editing software 贈50 Insurance 贈1,000 Laptop 贈200 Total 贈4,500+
- 12. Training 1: regulations Avoid national no-fly zones. Fly below 125m in height. Fly at least 150m away from congested areas. Fly at least 50m away from roads, building and people. Fly within line-of-sight (<500 m)

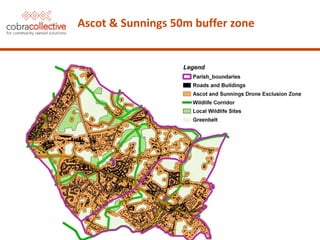

- 13. Ascot & Sunnings 50m buffer zone

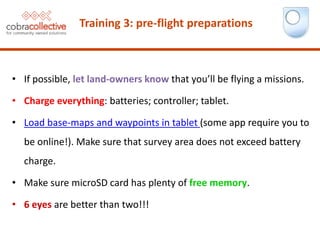

- 14. Training 3: pre-flight preparations If possible, let land-owners know that youll be flying a missions. Charge everything: batteries; controller; tablet. Load base-maps and waypoints in tablet (some app require you to be online!). Make sure that survey area does not exceed battery charge. Make sure microSD card has plenty of free memory. 6 eyes are better than two!!!

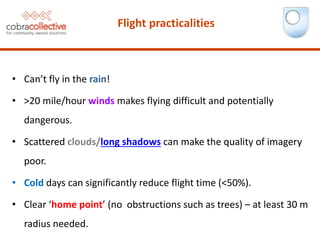

- 15. Flight practicalities Cant fly in the rain! >20 mile/hour winds makes flying difficult and potentially dangerous. Scattered clouds/long shadows can make the quality of imagery poor. Cold days can significantly reduce flight time (<50%). Clear home point (no obstructions such as trees) at least 30 m radius needed.

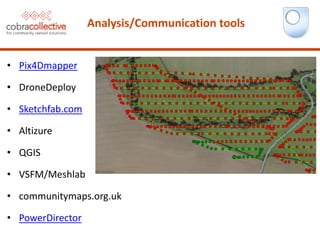

- 16. Analysis/Communication tools Pix4Dmapper DroneDeploy Sketchfab.com Altizure QGIS VSFM/Meshlab communitymaps.org.uk PowerDirector
- 18. Practice!!!

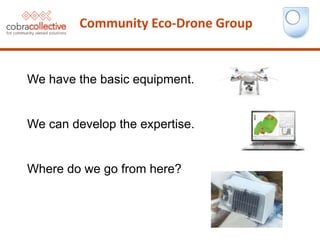

- 19. Community Eco-Drone Group We have the basic equipment. We can develop the expertise. Where do we go from here?

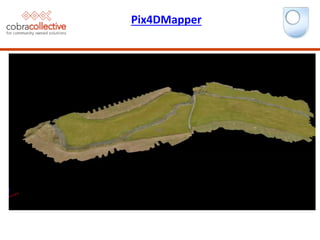

- 20. Pix4DMapper

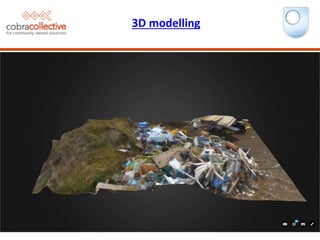

- 21. 3D modelling

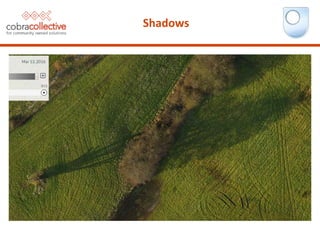

- 22. Shadows

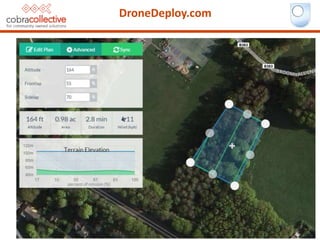

- 23. DroneDeploy.com
Editor's Notes
- #8: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #9: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #10: Distance from Sunningdale/Ascot to Heathrow airport is >10km
- #11: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #12: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #13: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity. Congested area: any area which is substantially used for residential, industrial, commercial or recreational purposes
- #14: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity. Congested area: any area which is substantially used for residential, industrial, commercial or recreational purposes
- #15: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #16: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #17: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #18: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #19: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #20: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #21: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #22: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #23: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
- #24: No-fly zones exclude all drones above 7 kg in weight. if you are under 7kg, it is strongly advised to notify the油air traffic service provider of your activity.
