![45CONFIDENTIAL
OBJECT ESCAPE (EXAMPLE)
Store a reference in a public static field, where any class and thread
could see it:
public static List<String> unsafeList;
public void initialize() {
unsafeList = new ArrayList<String>();
}
Return a reference from a non-private method:
class UnsafeCurrencies {
private String[] currencies = new String[] {"USD",
"GBP", "BGN", "EUR", "AUD"};
public String[] getCurrencies() { return currencies; }
}](https://image.slidesharecdn.com/concurrentprogrammingwithoutsynchronization-150705193538-lva1-app6892/85/Concurrent-programming-without-synchronization-45-320.jpg)
Concurrent programming without synchronization
- 1. 1CONFIDENTIAL CONCURRENT PROGRAMMING WITHOUT SYNCHRONIZATION JENI MARKISHKA MARTIN HRISTOV JULY 4, 2015

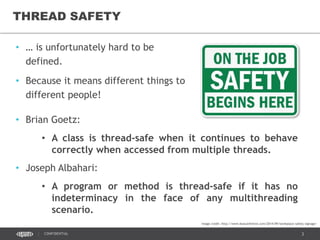

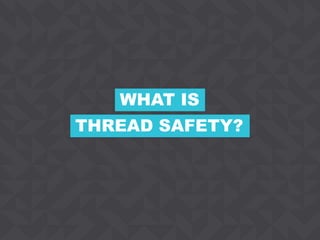

- 3. 3CONFIDENTIAL THREAD SAFETY is unfortunately hard to be defined. Because it means different things to different people! Brian Goetz: A class is thread-safe when it continues to behave correctly when accessed from multiple threads. Joseph Albahari: A program or method is thread-safe if it has no indeterminacy in the face of any multithreading scenario. Image credit: http://www.beaconhillnw.com/2014/09/workplace-safety-signage/

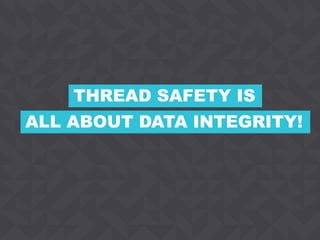

- 4. 4CONFIDENTIAL ALL ABOUT DATA INTEGRITY! THREAD SAFETY IS
- 5. 5CONFIDENTIAL THREAD SAFETY? BUT HOW DO WE ACHIEVE
- 6. 6CONFIDENTIAL THREAD SAFETY? BUT HOW DO WE ACHIEVE > MUTEXES > LOCK-FREE MECHANISMS

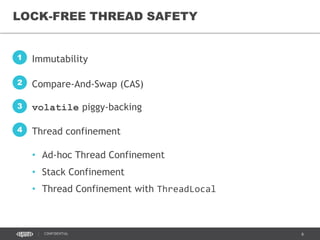

- 7. 7CONFIDENTIAL LOCK-FREE THREAD SAFETY Immutability1 Compare-And-Swap (CAS)2 volatile piggy-backing3 Thread confinement4 Ad-hoc Thread Confinement Stack Confinement Thread Confinement with ThreadLocal

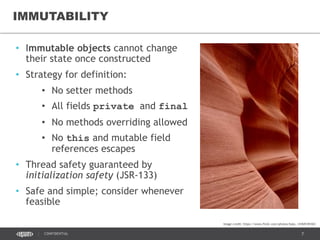

- 8. 8CONFIDENTIAL IMMUTABILITY Immutable objects cannot change their state once constructed Strategy for definition: No setter methods All fields private and final No methods overriding allowed No this and mutable field references escapes Thread safety guaranteed by initialization safety (JSR-133) Safe and simple; consider whenever feasible Image credit: https://www.flickr.com/photos/bala_/4184518104/

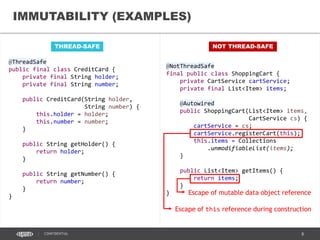

- 9. 9CONFIDENTIAL @ThreadSafe public final class CreditCard { private final String holder; private final String number; public CreditCard(String holder, String number) { this.holder = holder; this.number = number; } public String getHolder() { return holder; } public String getNumber() { return number; } } THREAD-SAFE IMMUTABILITY (EXAMPLES) NOT THREAD-SAFE @NotThreadSafe final public class ShoppingCart { private CartService cartService; private final List<Item> items; @Autowired public ShoppingCart(List<Item> items, CartService cs) { cartService = cs; cartService.registerCart(this); this.items = Collections .unmodifiableList(items); } public List<Item> getItems() { return items; } }
- 10. 10CONFIDENTIAL @ThreadSafe public final class CreditCard { private final String holder; private final String number; public CreditCard(String holder, String number) { this.holder = holder; this.number = number; } public String getHolder() { return holder; } public String getNumber() { return number; } } THREAD-SAFE IMMUTABILITY (EXAMPLES) NOT THREAD-SAFE @NotThreadSafe final public class ShoppingCart { private CartService cartService; private final List<Item> items; @Autowired public ShoppingCart(List<Item> items, CartService cs) { cartService = cs; cartService.registerCart(this); this.items = Collections .unmodifiableList(items); } public List<Item> getItems() { return items; } } Escape of mutable data object reference Escape of this reference during construction

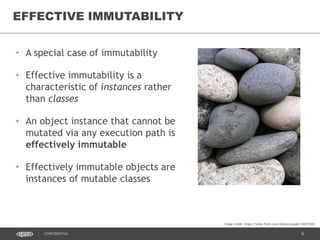

- 11. 11CONFIDENTIAL EFFECTIVE IMMUTABILITY A special case of immutability Effective immutability is a characteristic of instances rather than classes An object instance that cannot be mutated via any execution path is effectively immutable Effectively immutable objects are instances of mutable classes Image credit: https://www.flickr.com/photos/pupski/34237242/

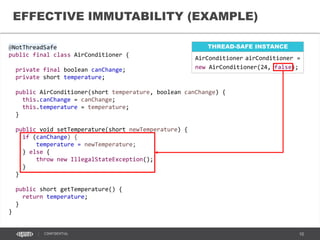

- 12. 12CONFIDENTIAL @NotThreadSafe public final class AirConditioner { private final boolean canChange; private short temperature; public AirConditioner(short temperature, boolean canChange) { this.canChange = canChange; this.temperature = temperature; } public void setTemperature(short newTemperature) { if (canChange) { temperature = newTemperature; } else { throw new IllegalStateException(); } } public short getTemperature() { return temperature; } } EFFECTIVE IMMUTABILITY (EXAMPLE) THREAD-SAFE INSTANCE AirConditioner airConditioner = new AirConditioner(24, false);
- 13. 13CONFIDENTIAL @NotThreadSafe public final class AirConditioner { private final boolean canChange; private short temperature; public AirConditioner(short temperature, boolean canChange) { this.canChange = canChange; this.temperature = temperature; } public void setTemperature(short newTemperature) { if (canChange) { temperature = newTemperature; } else { throw new IllegalStateException(); } } public short getTemperature() { return temperature; } } EFFECTIVE IMMUTABILITY (EXAMPLE) THREAD-SAFE INSTANCE AirConditioner airConditioner = new AirConditioner(24, false);

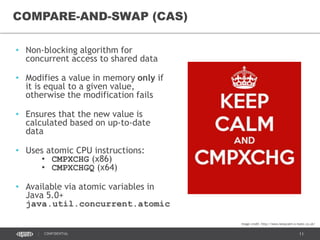

- 14. 14CONFIDENTIAL COMPARE-AND-SWAP (CAS) Non-blocking algorithm for concurrent access to shared data Modifies a value in memory only if it is equal to a given value, otherwise the modification fails Ensures that the new value is calculated based on up-to-date data Uses atomic CPU instructions: CMPXCHG (x86) CMPXCHGQ (x64) Available via atomic variables in Java 5.0+ java.util.concurrent.atomic Image credit: http://www.keepcalm-o-matic.co.uk/

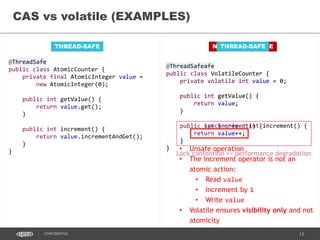

- 29. 29CONFIDENTIAL @ThreadSafe public class AtomicCounter { private final AtomicInteger value = new AtomicInteger(0); public int getValue() { return value.get(); } public int increment() { return value.incrementAndGet(); } } THREAD-SAFE CAS vs volatile (EXAMPLES) NOT THREAD-SAFE @NotThreadSafe public class VolatileCounter { private volatile int value = 0; public int getValue() { return value; } public int increment() { return value++; } }
- 30. 30CONFIDENTIAL @ThreadSafe public class AtomicCounter { private final AtomicInteger value = new AtomicInteger(0); public int getValue() { return value.get(); } public int increment() { return value.incrementAndGet(); } } THREAD-SAFE CAS vs volatile (EXAMPLES) NOT THREAD-SAFE @NotThreadSafe public class VolatileCounter { private volatile int value = 0; public int getValue() { return value; } public int increment() { return value++; } } Unsafe operation The increment operator is not an atomic action: Read value Increment by 1 Write value Volatile ensures visibility only and not atomicity
- 31. 31CONFIDENTIAL @ThreadSafe public class VolatileCounter { private volatile int value = 0; public int getValue() { return value; } public synchronized int increment() { return value++; } } @ThreadSafe public class AtomicCounter { private final AtomicInteger value = new AtomicInteger(0); public int getValue() { return value.get(); } public int increment() { return value.incrementAndGet(); } } THREAD-SAFE CAS vs volatile (EXAMPLES) THREAD-SAFE Lock contention == performance degradation

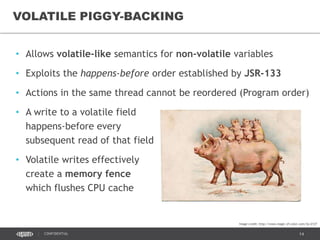

- 32. 32CONFIDENTIAL VOLATILE PIGGY-BACKING Allows volatile-like semantics for non-volatile variables Exploits the happens-before order established by JSR-133 Actions in the same thread cannot be reordered (Program order) A write to a volatile field happens-before every subsequent read of that field Volatile writes effectively create a memory fence which flushes CPU cache Image credit: http://www.magic-of-color.com/?p=2127

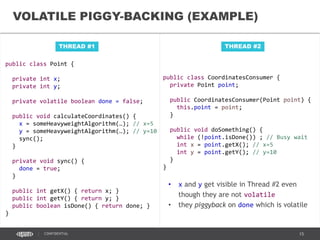

- 33. 33CONFIDENTIAL public class Point { private int x; private int y; private volatile boolean done = false; public void calculateCoordinates() { x = someHeavyweightAlgorithm(); // x=5 y = someHeavyweightAlgorithm(); // y=10 sync(); } private void sync() { done = true; } public int getX() { return x; } public int getY() { return y; } public boolean isDone() { return done; } } THREAD #1 VOLATILE PIGGY-BACKING (EXAMPLE) THREAD #2 public class CoordinatesConsumer { private Point point; public CoordinatesConsumer(Point point) { this.point = point; } public void doSomething() { while (!point.isDone()) ; // Busy wait int x = point.getX(); // x=5 int y = point.getY(); // y=10 } } x and y get visible in Thread #2 even though they are not volatile they piggyback on done which is volatile
- 34. 34CONFIDENTIAL VOLATILE PIGGY-BACKING PRECAUTIONS Volatile piggybacking is fragile! Use at your own risk! Ensures only visibility, thus applicable for single writer / multiple readers scenarios only It does not ensure compound atomicity in case of multiple writes/reads. Image credit: http://www.noomii.com/blog/5949-warning-union-info-centre-scam

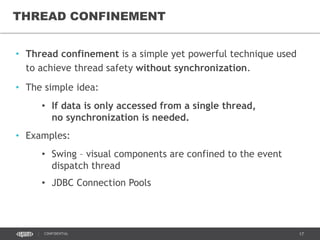

- 35. 35CONFIDENTIAL THREAD CONFINEMENT Thread confinement is a simple yet powerful technique used to achieve thread safety without synchronization. The simple idea: If data is only accessed from a single thread, no synchronization is needed. Examples: Swing visual components are confined to the event dispatch thread JDBC Connection Pools

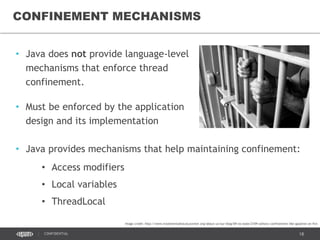

- 36. 36CONFIDENTIAL CONFINEMENT MECHANISMS Java does not provide language-level mechanisms that enforce thread confinement. Must be enforced by the application design and its implementation Java provides mechanisms that help maintaining confinement: Access modifiers Local variables ThreadLocal Image credit: http://www.treatmentadvocacycenter.org/about-us/our-blog/69-no-state/2109-solitary-confinement-like-gasoline-on-fire

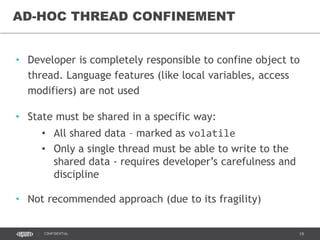

- 37. 37CONFIDENTIAL AD-HOC THREAD CONFINEMENT Developer is completely responsible to confine object to thread. Language features (like local variables, access modifiers) are not used State must be shared in a specific way: All shared data marked as volatile Only a single thread must be able to write to the shared data - requires developers carefulness and discipline Not recommended approach (due to its fragility)

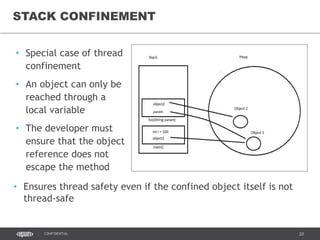

- 38. 38CONFIDENTIAL STACK CONFINEMENT Special case of thread confinement An object can only be reached through a local variable The developer must ensure that the object reference does not escape the method Ensures thread safety even if the confined object itself is not thread-safe

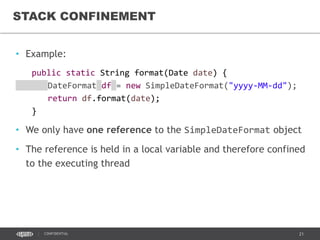

- 39. 39CONFIDENTIAL STACK CONFINEMENT Example: public static String format(Date date) { DateFormat df = new SimpleDateFormat("yyyy-MM-dd"); return df.format(date); } We only have one reference to the SimpleDateFormat object The reference is held in a local variable and therefore confined to the executing thread
- 40. 40CONFIDENTIAL STACK CONFINEMENT private static final DateFormat df = new SimpleDateFormat("yyyy-MM-dd"); public static String format(Date date) { return df.format(date); }

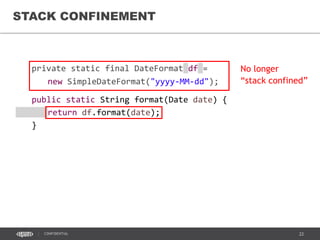

- 41. 41CONFIDENTIAL STACK CONFINEMENT private static final DateFormat df = new SimpleDateFormat("yyyy-MM-dd"); public static String format(Date date) { return df.format(date); } No longer stack confined

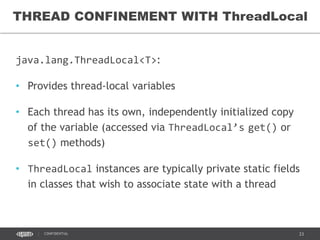

- 42. 42CONFIDENTIAL THREAD CONFINEMENT WITH ThreadLocal java.lang.ThreadLocal<T>: Provides thread-local variables Each thread has its own, independently initialized copy of the variable (accessed via ThreadLocals get() or set() methods) ThreadLocal instances are typically private static fields in classes that wish to associate state with a thread

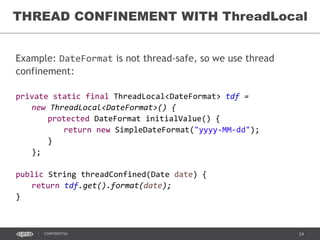

- 43. 43CONFIDENTIAL THREAD CONFINEMENT WITH ThreadLocal Example: DateFormat is not thread-safe, so we use thread confinement: private static final ThreadLocal<DateFormat> tdf = new ThreadLocal<DateFormat>() { protected DateFormat initialValue() { return new SimpleDateFormat("yyyy-MM-dd"); } }; public String threadConfined(Date date) { return tdf.get().format(date); }

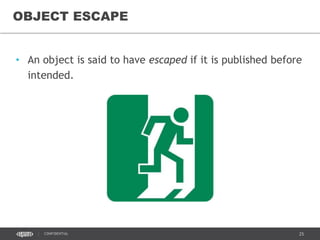

- 44. 44CONFIDENTIAL OBJECT ESCAPE An object is said to have escaped if it is published before intended. Image credit: http://www.humbersidefire.gov.uk/your-safety/safety-in-the-home/escape

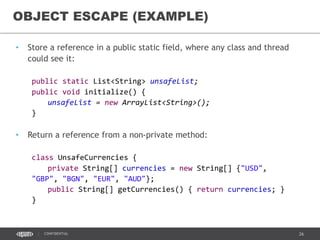

- 45. 45CONFIDENTIAL OBJECT ESCAPE (EXAMPLE) Store a reference in a public static field, where any class and thread could see it: public static List<String> unsafeList; public void initialize() { unsafeList = new ArrayList<String>(); } Return a reference from a non-private method: class UnsafeCurrencies { private String[] currencies = new String[] {"USD", "GBP", "BGN", "EUR", "AUD"}; public String[] getCurrencies() { return currencies; } }

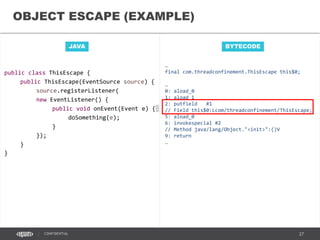

- 46. 46CONFIDENTIAL JAVA OBJECT ESCAPE (EXAMPLE) BYTECODE final com.threadconfinement.ThisEscape this$0; 0: aload_0 1: aload_1 2: putfield #1 // Field this$0:Lcom/threadconfinement/ThisEscape; 5: aload_0 6: invokespecial #2 // Method java/lang/Object."<init>":()V 9: return public class ThisEscape { public ThisEscape(EventSource source) { source.registerListener( new EventListener() { public void onEvent(Event e) { doSomething(e); } }); } }
- 47. 47CONFIDENTIAL JAVA OBJECT ESCAPE (EXAMPLE) BYTECODE final com.threadconfinement.ThisEscape this$0; 0: aload_0 1: aload_1 2: putfield #1 // Field this$0:Lcom/threadconfinement/ThisEscape; 5: aload_0 6: invokespecial #2 // Method java/lang/Object."<init>":()V 9: return public class ThisEscape { public ThisEscape(EventSource source) { source.registerListener( new EventListener() { public void onEvent(Event e) { doSomething(e); } }); } }

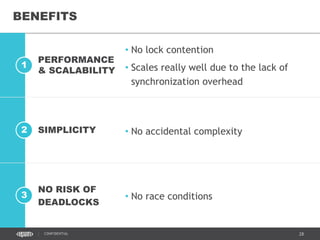

- 48. 48CONFIDENTIAL BENEFITS No accidental complexitySIMPLICITY2 1 No lock contention Scales really well due to the lack of synchronization overhead PERFORMANCE & SCALABILITY 3 No race conditions NO RISK OF DEADLOCKS
