Me330 lecture7
Download as ppt, pdf0 likes275 views
This document discusses control systems and summarizes key concepts from lecture 7: 1) Electronic systems have high input impedance, low output impedance, and high gain due to operational amplifiers. Op-amps provide feedback and different impedance terms in example circuits. 2) Electrical and mechanical systems can be combined. Lorentz force and Faraday's law relate current, magnetic fields, and motion in devices like DC servomotors. 3) Transfer functions describe the input-output behavior of electrical, mechanical, and combined electro-mechanical systems. The overall transfer function is derived by substituting Lorentz and Faraday equations into the individual system transfer functions.
1 of 11
Download to read offline
Ad
Recommended
Elect principles 2 dc transients (inductive)
Elect principles 2 dc transients (inductive)sdacey
油
When an emf is applied to an inductor, the current cannot rise instantly due to the back emf generated by the coil, which opposes the flow of current. As the current rises in an inductance, the back emf causes the rate of rise in current to reduce over time. Similarly, when the source is removed, the energy stored in the magnetic field cannot cause the current to fall immediately to zero due to the self-induced back emf.Unit v
Unit vAbha Tripathi
油
This document contains 9 questions regarding synchronous generator and power system stability analysis. Some key details include:
1. Calculating the steady state stability limits of a 500km transmission line under different conditions, such as including or neglecting line capacitance and resistance. The limits ranged from 130-175MW.
2. Finding the allowable sudden load increase for a power deficient area receiving 50MW over a 100MW capacity tie line, which is 72.54MW.
3. Determining if synchronism would be lost if the load on a motor drawing 30% of max power suddenly increased 100%, and if not, calculating the max torque angle excursion, which is 580.
The document analyElectro mechanical lecture 1
Electro mechanical lecture 1Abdelrahman Karrar
油
1. The document discusses electro-mechanical energy conversion in plunger and rotating systems using a coil, plunger/rotor, and air gap.
2. It examines the change in stored magnetic energy and mechanical work done when the plunger/rotor moves due to a change in the air gap inductance.
3. The difference between the supplied electrical energy and change in stored energy equals the mechanical work done on the plunger/rotor.Elect principles 2 dc transients (capacitive)
Elect principles 2 dc transients (capacitive)sdacey
油
1. When a capacitor is charged by a voltage source through a resistor, the voltage across the capacitor rises exponentially as electrons move into the capacitor plates. The time it takes for the voltage to reach 63% of its final value is called the time constant and equals the product of the capacitor's capacitance and the resistor's resistance.
2. After being charged, if the voltage source is removed and the capacitor discharged through a short circuit, the stored energy will cause a current to flow which decays exponentially over the time constant as the electrons drain from the capacitor plates.
3. The voltage and current values at any time during the charging or discharging process can be calculated using equations that involve the time constant,Elect principles 2 max power transfer
Elect principles 2 max power transfersdacey
油
Maximum power is transferred from a source to a load when their resistances match. This applies to both DC and AC circuits where resistance is replaced by impedance. Using the Thevenin equivalent, maximum power is delivered to a load when its resistance equals the Thevenin resistance.Elect principles 2 ac circuits parallel
Elect principles 2 ac circuits parallelsdacey
油
For a parallel RLC circuit with an AC voltage source:
1) The current through each branch (R, L, C) is determined individually using phasor diagrams.
2) The current through the resistor is in phase with voltage, the inductor current lags by 90 degrees, and the capacitor current leads by 90 degrees.
3) The total circuit current is found by combining the phasor diagrams and taking the phasor sum of the branch currents, resulting in a phase angle between 0 and 90 degrees relative to the voltage.Impedanc matching
Impedanc matchingmohammedali1249
油
The document discusses microwave device and integrated circuit technology. It begins with an introduction and then covers various topics related to impedance matching including reviewing the Smith chart, impedance matching using reactive components, converting between series and parallel resistor-inductor and resistor-capacitor circuits, tapped capacitors and inductors, mutual inductance, matching using transformers, tuning transformers, bandwidth of impedance transformation networks, quality factors of LC resonators, transmission lines, and S, Y, and Z parameters. Diagrams and examples are provided to illustrate key concepts.Practice questions for unit ii
Practice questions for unit iiAbha Tripathi
油
The document contains 10 practice questions related to symmetrical components for electrical circuits:
1. Find symmetrical components of line currents for an unbalanced star-connected load.
2. Determine symmetrical components of given line voltages and draw the vector diagram.
3. Calculate symmetrical components of phase currents for a delta-connected balanced load.
4. Use symmetrical components to calculate active and reactive power for a delta-connected circuit.
5. Use symmetrical components to calculate active and reactive power for another delta-connected circuit.
6. Build line currents vectors for a transformer circuit given symmetrical components.
7. Determine line currents and symmetrical components before and after a line fault in a delta load.
8. Calculate branch currentsElect principles 2 ac circuits (rl)
Elect principles 2 ac circuits (rl)sdacey
油
Inductance is produced in a coil by a changing magnetic field from an alternating current supply, which opposes the supply current. In an AC circuit containing both resistance and inductance, the impedance Z is equal to the square root of resistance R squared plus reactance XL squared. The current lags the applied voltage by an angle 慮 between 0 and 90 degrees, as calculated by the tangent of 慮 being equal to XL over R.Circuit laws & network theorems
Circuit laws & network theoremsHimanshu Batra
油
Kirchhoff's laws deal with the conservation of charge and energy in electrical circuits. There are two Kirchhoff's laws:
1. Kirchhoff's current law (KCL) states that the algebraic sum of currents in a network meeting at a point is zero.
2. Kirchhoff's voltage law (KVL) states that the directed sum of the potential differences around any closed network is zero.
Circuit analysis methods like mesh analysis, nodal analysis, and superposition theorem can be used to solve circuits using Kirchhoff's laws. Mesh analysis uses KVL to analyze loops in a planar circuit. Nodal analysis uses KCL to analyze connections (nodes) in a circuit. SuperpositionPresentation of Electrical Engineering ( Analysis of AC circuit: RC circuit )
Presentation of Electrical Engineering ( Analysis of AC circuit: RC circuit )MohitRaghav19
油
An RC circuit consists of a resistor and a capacitor connected in series, with key calculations for current, voltage, and power outlined through phasor diagrams. The current leads the voltage by a phase angle, affecting the average power consumed, which is dependent solely on the resistance, as capacitors do not consume power. The document details formulas for impedance, phase angle, and the relation of power in the circuit over a complete cycle.Unit 1, Power system Analysis
Unit 1, Power system AnalysisAbha Tripathi
油
1) The document contains 9 problems related to power systems. Problem 1 asks to calculate the load resistance in ohms for a given transformer configuration. Problem 2 is similar but with the resistors reconnected in a Y configuration. Problem 3 asks to draw the per unit impedance diagram for a power system shown in a figure.EEP303: Exp5
EEP303: Exp5Umang Gupta
油
1. The document describes an experiment using a Newton Raphson load flow program to analyze load ability margin determination, line overloads from generation rescheduling and series compensation, and the Ferranti effect.
2. Key findings include determining the critical load multiplier for different load types, identifying sensitive generators and transmission lines to alleviate overloads, and observing higher voltages at load buses during light loading conditions consistent with the Ferranti effect.
3. The experiment demonstrated using load flow models to study a practical power system and determine sensitivity lists to identify the best corrective changes to address overloads or voltage issues.Soln unit5
Soln unit5Abha Tripathi
油
The document describes the transfer reactances between a generator and infinite bus bar under various conditions, including pre-fault, during fault, and post-fault. It then asks to determine the maximum load that can be transferred without loss of stability if the fault is cleared when the rotor has advanced 600 electrical degrees from its prefault position. Through calculations using the reactance values and rotor position, it determines the maximum load is 127.3 MW.Unit1 and 2 sample solutions
Unit1 and 2 sample solutionsAbha Tripathi
油
The document contains 4 solved questions related to power systems.
1. It asks to draw the pu impedance diagram for a given power system and lists the ratings of generator, motor, and transformers. The solution provides step-by-step working to calculate the pu impedances.
2. It asks to calculate the terminal voltage of a synchronous machine in a given radial transmission system. The solution shows the calculations.
3. It provides ratings of a synchronous generator and asks to determine quantities based on given conditions. The solution includes a phasor diagram.
4. It asks to calculate the line current for a 3-phase star connected load with given impedances. The solution sets up equations based on the circuitPractice questions
Practice questionsAbha Tripathi
油
This document contains 10 practice questions related to unit 1 of a power systems course. The questions cover topics such as:
1) Drawing per unit reactance and impedance diagrams for power systems with generators, transformers and transmission lines.
2) Calculating voltage, current, power and machine parameters like excitation and load angle for generators supplying power to loads through transmission networks.
3) Determining steady state stability limits and drawing vector diagrams for generator operations.
The questions provide ratings and parameters for generators, transformers, transmission lines and loads and ask students to analyze and model the power systems using concepts like per unit quantities and reactance/impedance diagrams.Unit4questions
Unit4questionsAbha Tripathi
油
The document contains 13 problems related to calculating fault currents in synchronous generator and transformer systems. The problems involve determining line currents, voltages and sequence currents for different fault types including line-to-ground, line-line and line-line-ground faults. Sequence networks are formed and fault calculations are performed based on the given positive, negative and zero sequence reactance values of generators, transformers, transmission lines and other system components.SUMMING AMPLIFIER
SUMMING AMPLIFIERAK138
油
This document describes a summing amplifier circuit using an operational amplifier (op-amp). The summing amplifier allows multiple input signals to be added together at the output. It discusses an inverting summing amplifier configuration with three input voltages V1, V2 and V3. The circuit produces an output voltage proportional to the algebraic sum of the three input voltages, effectively adding them, because each input sees its own resistor and they are isolated by the op-amp's virtual earth. Scaling can also be achieved if the input resistors are unequal.122 Hindmarsh-Rose Poster
122 Hindmarsh-Rose PosterJin Chen
油
This document describes the simulation and implementation of an analog circuit that models the Hindmarsh-Rose neuron. The circuit is designed and simulated in LTSPICE based on three differential equations. Components are selected to match the equation coefficients. The simulated output is compared to measuring the real circuit, but measurements were unsuccessful likely due to component errors. While the simulations were successful, building the real circuit proved challenging and did not produce the expected waveforms.THEVENINS THEOREM AND WHEATSTONE BRIDGE experiment 4
THEVENINS THEOREM AND WHEATSTONE BRIDGE experiment 4Karimi LordRamza
油
1) The document describes an experiment to analyze DC resistive circuits using Thevenin's Theorem and analyze an unbalanced Wheatstone bridge.
2) Key aspects of the experiment include using Thevenin's Theorem to determine equivalent resistance (Rth) and voltage (Vth) for circuits, and analyzing how these values change when measuring a Wheatstone bridge circuit with an unknown resistance.
3) Results showed differences between estimated and measured values for currents and voltages due to experimental errors like resistance in connecting wires. Thevenin's Theorem was useful for simplifying complex circuits into equivalent components.Unit 3 Part 1
Unit 3 Part 1guest67994e4
油
This document contains 3 short problems related to power transmission lines:
1. A 15kVA line operates at 33kV and calculates voltage, power factor, regulation, and efficiency.
2. A 5MW, 11kV line with 10% power loss calculates sending end voltage and power factor.
3. A 110kV, 150km line calculates the receiving end load current needed for unity power factor.EEE Interview Question
EEE Interview QuestionMostafizur Rahman
油
The document contains questions and answers related to electrical engineering topics. Some key points:
- Electric traction uses electric power for railways, trams, and trolleys, now using magnetic traction for bullet trains. DC motors are commonly used.
- Electronic chokes can be used to start 40W tube lights with 230V AC/DC without other components like coils.
- "Pu" stands for per unit and is used in power system diagrams to represent components of different ratings on a common scale using base values.
- Thermal power stations obtain steam from boiling water to run turbines coupled to generators to produce electricity.
- Links are used at neutral points to withstand high amps, whileQuestions practice unit iv
Questions practice unit ivAbha Tripathi
油
1) A symmetrical short circuit occurs on a 22kV bus bar. The fault apparent power is 73MVA and the fault current is 1.91kA.
2) Fault current measurements for a 50MVA alternator allow calculation of its per unit sequence reactances as 1.403, 0.351, and 0.151.
3) For a 100MVA generator with given reactances, the sustained short circuit current is 2467A, initial breaker current is 16882A, and maximum DC current is not provided.Ee 791 drives lab maual
Ee 791 drives lab maualDivya15121983
油
The document describes experiments on electric drive systems in the Electrical Department lab at JIS College of Engineering. The 10 listed experiments include:
1. Studying thyristor controlled DC drives and chopper fed DC drives.
2. Studying AC single phase motor speed control using a TRIAC.
3. Studying PWM inverter fed 3-phase induction motor control using software.
The document provides theory, circuit diagrams, and procedures for each experiment. It describes using equipment like thyristors, choppers, inverters, motors, and software to control motor speed and study electric drive systems.Unit 2 samplesolutions
Unit 2 samplesolutionsAbha Tripathi
油
The document describes calculating currents in a star-connected load using symmetrical components. It finds:
Ia1 = 13.8461 - 0.0000i
Ia2 = 2.3077 + 1.3324i
Ia = 16.1539 + 1.3323i
Vn = 38.4614 -13.3234i
It also solves another example finding line currents Ia, Ib, Ic for a delta-connected load from line voltages using symmetrical components. Relations between symmetrical components of line and phase quantities are also examined.Network Theorems.ppt
Network Theorems.pptbhanupratap_11
油
This document introduces several important network theorems: superposition, Thevenin's, Norton's, maximum power transfer, Millman's, substitution, and reciprocity. It provides definitions and procedures for applying each theorem, such as replacing network elements with voltage/current sources and determining equivalent resistances and voltages. The theorems allow analyzing complex networks, determining outputs when components change, and maximizing power transfer between networks.EEP303: Cycle ii exp 4
EEP303: Cycle ii exp 4Umang Gupta
油
1. The document describes an experiment to determine the effects of VAR compensation on voltage regulation, power factor, and transmission efficiency for varying loads on a long transmission line.
2. A synchronous condenser is used to supply reactive power (VARs) to maintain zero voltage regulation as the load changes. The synchronous condenser takes lagging KVA when operating below a certain field current and supplies leading KVA above this level.
3. Observations were recorded for an RL load and RLC load with and without VAR compensation from the synchronous condenser. The results showed that the receiving voltage dropped more without compensation and that the synchronous condenser supplied a linear increase in VARs with increasing load.Unit 2 Questions_Nagrath kothari
Unit 2 Questions_Nagrath kothariAbha Tripathi
油
The document contains 10 problems related to symmetrical components analysis of three-phase electrical circuits:
1. Compute polar forms of complex expressions.
2. Determine line voltages and currents for a Y-connected resistor bank connected to a -Y transformer.
3. Find symmetrical components of three phase voltages.
The problems involve calculating symmetrical components of voltages and currents, determining line quantities from symmetrical components, drawing sequence networks, and solving circuits using symmetrical components analysis.EM-I PPT (1).pdf
EM-I PPT (1).pdfShwetaVaibhavGoyal
油
This document discusses electromechanical systems and their components. It begins by defining an electromechanical system as one that consists of at least one electrical subsystem and one mechanical subsystem coupled through electromagnetic fields. It then provides block diagrams showing the typical energy and information flows within an electromechanical system. The document goes on to describe various components commonly found in electromechanical systems, including electric motors, controllers, sensors and power converters. It also discusses principles of electromagnetic energy conversion between electrical and mechanical domains.EM-I.pptx
EM-I.pptxBalramGyadari1
油
The document provides an overview of electromechanical systems (EMS), focusing on the principles of energy conversion between electrical and mechanical forms. It discusses components of EMS, their working mechanisms, and the significance of energy efficiency in design and control. Various theoretical concepts, equations, and real-world applications, including motors and generators, are also outlined to illustrate EMS functionality.More Related Content
What's hot (20)
Elect principles 2 ac circuits (rl)
Elect principles 2 ac circuits (rl)sdacey
油
Inductance is produced in a coil by a changing magnetic field from an alternating current supply, which opposes the supply current. In an AC circuit containing both resistance and inductance, the impedance Z is equal to the square root of resistance R squared plus reactance XL squared. The current lags the applied voltage by an angle 慮 between 0 and 90 degrees, as calculated by the tangent of 慮 being equal to XL over R.Circuit laws & network theorems
Circuit laws & network theoremsHimanshu Batra
油
Kirchhoff's laws deal with the conservation of charge and energy in electrical circuits. There are two Kirchhoff's laws:
1. Kirchhoff's current law (KCL) states that the algebraic sum of currents in a network meeting at a point is zero.
2. Kirchhoff's voltage law (KVL) states that the directed sum of the potential differences around any closed network is zero.
Circuit analysis methods like mesh analysis, nodal analysis, and superposition theorem can be used to solve circuits using Kirchhoff's laws. Mesh analysis uses KVL to analyze loops in a planar circuit. Nodal analysis uses KCL to analyze connections (nodes) in a circuit. SuperpositionPresentation of Electrical Engineering ( Analysis of AC circuit: RC circuit )
Presentation of Electrical Engineering ( Analysis of AC circuit: RC circuit )MohitRaghav19
油
An RC circuit consists of a resistor and a capacitor connected in series, with key calculations for current, voltage, and power outlined through phasor diagrams. The current leads the voltage by a phase angle, affecting the average power consumed, which is dependent solely on the resistance, as capacitors do not consume power. The document details formulas for impedance, phase angle, and the relation of power in the circuit over a complete cycle.Unit 1, Power system Analysis
Unit 1, Power system AnalysisAbha Tripathi
油
1) The document contains 9 problems related to power systems. Problem 1 asks to calculate the load resistance in ohms for a given transformer configuration. Problem 2 is similar but with the resistors reconnected in a Y configuration. Problem 3 asks to draw the per unit impedance diagram for a power system shown in a figure.EEP303: Exp5
EEP303: Exp5Umang Gupta
油
1. The document describes an experiment using a Newton Raphson load flow program to analyze load ability margin determination, line overloads from generation rescheduling and series compensation, and the Ferranti effect.
2. Key findings include determining the critical load multiplier for different load types, identifying sensitive generators and transmission lines to alleviate overloads, and observing higher voltages at load buses during light loading conditions consistent with the Ferranti effect.
3. The experiment demonstrated using load flow models to study a practical power system and determine sensitivity lists to identify the best corrective changes to address overloads or voltage issues.Soln unit5
Soln unit5Abha Tripathi
油
The document describes the transfer reactances between a generator and infinite bus bar under various conditions, including pre-fault, during fault, and post-fault. It then asks to determine the maximum load that can be transferred without loss of stability if the fault is cleared when the rotor has advanced 600 electrical degrees from its prefault position. Through calculations using the reactance values and rotor position, it determines the maximum load is 127.3 MW.Unit1 and 2 sample solutions
Unit1 and 2 sample solutionsAbha Tripathi
油
The document contains 4 solved questions related to power systems.
1. It asks to draw the pu impedance diagram for a given power system and lists the ratings of generator, motor, and transformers. The solution provides step-by-step working to calculate the pu impedances.
2. It asks to calculate the terminal voltage of a synchronous machine in a given radial transmission system. The solution shows the calculations.
3. It provides ratings of a synchronous generator and asks to determine quantities based on given conditions. The solution includes a phasor diagram.
4. It asks to calculate the line current for a 3-phase star connected load with given impedances. The solution sets up equations based on the circuitPractice questions
Practice questionsAbha Tripathi
油
This document contains 10 practice questions related to unit 1 of a power systems course. The questions cover topics such as:
1) Drawing per unit reactance and impedance diagrams for power systems with generators, transformers and transmission lines.
2) Calculating voltage, current, power and machine parameters like excitation and load angle for generators supplying power to loads through transmission networks.
3) Determining steady state stability limits and drawing vector diagrams for generator operations.
The questions provide ratings and parameters for generators, transformers, transmission lines and loads and ask students to analyze and model the power systems using concepts like per unit quantities and reactance/impedance diagrams.Unit4questions
Unit4questionsAbha Tripathi
油
The document contains 13 problems related to calculating fault currents in synchronous generator and transformer systems. The problems involve determining line currents, voltages and sequence currents for different fault types including line-to-ground, line-line and line-line-ground faults. Sequence networks are formed and fault calculations are performed based on the given positive, negative and zero sequence reactance values of generators, transformers, transmission lines and other system components.SUMMING AMPLIFIER
SUMMING AMPLIFIERAK138
油
This document describes a summing amplifier circuit using an operational amplifier (op-amp). The summing amplifier allows multiple input signals to be added together at the output. It discusses an inverting summing amplifier configuration with three input voltages V1, V2 and V3. The circuit produces an output voltage proportional to the algebraic sum of the three input voltages, effectively adding them, because each input sees its own resistor and they are isolated by the op-amp's virtual earth. Scaling can also be achieved if the input resistors are unequal.122 Hindmarsh-Rose Poster
122 Hindmarsh-Rose PosterJin Chen
油
This document describes the simulation and implementation of an analog circuit that models the Hindmarsh-Rose neuron. The circuit is designed and simulated in LTSPICE based on three differential equations. Components are selected to match the equation coefficients. The simulated output is compared to measuring the real circuit, but measurements were unsuccessful likely due to component errors. While the simulations were successful, building the real circuit proved challenging and did not produce the expected waveforms.THEVENINS THEOREM AND WHEATSTONE BRIDGE experiment 4
THEVENINS THEOREM AND WHEATSTONE BRIDGE experiment 4Karimi LordRamza
油
1) The document describes an experiment to analyze DC resistive circuits using Thevenin's Theorem and analyze an unbalanced Wheatstone bridge.
2) Key aspects of the experiment include using Thevenin's Theorem to determine equivalent resistance (Rth) and voltage (Vth) for circuits, and analyzing how these values change when measuring a Wheatstone bridge circuit with an unknown resistance.
3) Results showed differences between estimated and measured values for currents and voltages due to experimental errors like resistance in connecting wires. Thevenin's Theorem was useful for simplifying complex circuits into equivalent components.Unit 3 Part 1
Unit 3 Part 1guest67994e4
油
This document contains 3 short problems related to power transmission lines:
1. A 15kVA line operates at 33kV and calculates voltage, power factor, regulation, and efficiency.
2. A 5MW, 11kV line with 10% power loss calculates sending end voltage and power factor.
3. A 110kV, 150km line calculates the receiving end load current needed for unity power factor.EEE Interview Question
EEE Interview QuestionMostafizur Rahman
油
The document contains questions and answers related to electrical engineering topics. Some key points:
- Electric traction uses electric power for railways, trams, and trolleys, now using magnetic traction for bullet trains. DC motors are commonly used.
- Electronic chokes can be used to start 40W tube lights with 230V AC/DC without other components like coils.
- "Pu" stands for per unit and is used in power system diagrams to represent components of different ratings on a common scale using base values.
- Thermal power stations obtain steam from boiling water to run turbines coupled to generators to produce electricity.
- Links are used at neutral points to withstand high amps, whileQuestions practice unit iv
Questions practice unit ivAbha Tripathi
油
1) A symmetrical short circuit occurs on a 22kV bus bar. The fault apparent power is 73MVA and the fault current is 1.91kA.
2) Fault current measurements for a 50MVA alternator allow calculation of its per unit sequence reactances as 1.403, 0.351, and 0.151.
3) For a 100MVA generator with given reactances, the sustained short circuit current is 2467A, initial breaker current is 16882A, and maximum DC current is not provided.Ee 791 drives lab maual
Ee 791 drives lab maualDivya15121983
油
The document describes experiments on electric drive systems in the Electrical Department lab at JIS College of Engineering. The 10 listed experiments include:
1. Studying thyristor controlled DC drives and chopper fed DC drives.
2. Studying AC single phase motor speed control using a TRIAC.
3. Studying PWM inverter fed 3-phase induction motor control using software.
The document provides theory, circuit diagrams, and procedures for each experiment. It describes using equipment like thyristors, choppers, inverters, motors, and software to control motor speed and study electric drive systems.Unit 2 samplesolutions
Unit 2 samplesolutionsAbha Tripathi
油
The document describes calculating currents in a star-connected load using symmetrical components. It finds:
Ia1 = 13.8461 - 0.0000i
Ia2 = 2.3077 + 1.3324i
Ia = 16.1539 + 1.3323i
Vn = 38.4614 -13.3234i
It also solves another example finding line currents Ia, Ib, Ic for a delta-connected load from line voltages using symmetrical components. Relations between symmetrical components of line and phase quantities are also examined.Network Theorems.ppt
Network Theorems.pptbhanupratap_11
油
This document introduces several important network theorems: superposition, Thevenin's, Norton's, maximum power transfer, Millman's, substitution, and reciprocity. It provides definitions and procedures for applying each theorem, such as replacing network elements with voltage/current sources and determining equivalent resistances and voltages. The theorems allow analyzing complex networks, determining outputs when components change, and maximizing power transfer between networks.EEP303: Cycle ii exp 4
EEP303: Cycle ii exp 4Umang Gupta
油
1. The document describes an experiment to determine the effects of VAR compensation on voltage regulation, power factor, and transmission efficiency for varying loads on a long transmission line.
2. A synchronous condenser is used to supply reactive power (VARs) to maintain zero voltage regulation as the load changes. The synchronous condenser takes lagging KVA when operating below a certain field current and supplies leading KVA above this level.
3. Observations were recorded for an RL load and RLC load with and without VAR compensation from the synchronous condenser. The results showed that the receiving voltage dropped more without compensation and that the synchronous condenser supplied a linear increase in VARs with increasing load.Unit 2 Questions_Nagrath kothari
Unit 2 Questions_Nagrath kothariAbha Tripathi
油
The document contains 10 problems related to symmetrical components analysis of three-phase electrical circuits:
1. Compute polar forms of complex expressions.
2. Determine line voltages and currents for a Y-connected resistor bank connected to a -Y transformer.
3. Find symmetrical components of three phase voltages.
The problems involve calculating symmetrical components of voltages and currents, determining line quantities from symmetrical components, drawing sequence networks, and solving circuits using symmetrical components analysis.Similar to Me330 lecture7 (20)
EM-I PPT (1).pdf
EM-I PPT (1).pdfShwetaVaibhavGoyal
油
This document discusses electromechanical systems and their components. It begins by defining an electromechanical system as one that consists of at least one electrical subsystem and one mechanical subsystem coupled through electromagnetic fields. It then provides block diagrams showing the typical energy and information flows within an electromechanical system. The document goes on to describe various components commonly found in electromechanical systems, including electric motors, controllers, sensors and power converters. It also discusses principles of electromagnetic energy conversion between electrical and mechanical domains.EM-I.pptx
EM-I.pptxBalramGyadari1
油
The document provides an overview of electromechanical systems (EMS), focusing on the principles of energy conversion between electrical and mechanical forms. It discusses components of EMS, their working mechanisms, and the significance of energy efficiency in design and control. Various theoretical concepts, equations, and real-world applications, including motors and generators, are also outlined to illustrate EMS functionality.Cst2
Cst2kodam2512
油
The document discusses the transfer function of a DC motor with field control by deriving equations for the electrical, mechanical, and electromechanical systems and converting them to the frequency domain. It then presents an analogy between mechanical and electrical systems by mapping mechanical components like mass, dampers, and springs to electrical components like inductors, resistors, and capacitors. This analogy shows that voltage is analogous to force, current to velocity, inductors to mass, resistors to dampers, and capacitors to springs.Transformer
TransformerMohammed Waris Senan
油
A transformer is a device that changes alternating current (ac) electric power at one voltage level to ac electric power at another voltage level through the action of a magnetic field. An ideal transformer is a lossless device that transfers power efficiently between its two windings. A real transformer is modeled using an equivalent circuit that accounts for power losses, including copper losses, eddy current losses, hysteresis losses, and leakage fluxes. The parameters of the equivalent circuit can be determined experimentally using open-circuit and short-circuit tests.Lecture 4 modelling-of_electrical__electronic_systems (1)
Lecture 4 modelling-of_electrical__electronic_systems (1)SALEH846
油
This document provides an overview of mathematical modeling of electrical and electronic systems. It discusses the basic elements of electrical systems including resistors, capacitors, and inductors. It provides the voltage-current relationships and Laplace transforms for each element. Examples are presented on finding transfer functions for circuits containing resistors, capacitors, and inductors. The document also discusses operational amplifiers and provides examples of determining transfer functions for circuits using op-amps, including inverting and non-inverting configurations.Power system analysis complex power reactive compensation
Power system analysis complex power reactive compensationHariharasudhanAnnadu
油
This document covers concepts related to complex power, reactive compensation, and three-phase systems in electrical engineering. It discusses phasor representation, the advantages of phasor analysis, and the relationships between real, reactive, and complex power. Additionally, it explains reactive compensation techniques and their benefits in power systems, including power factor correction examples and the advantages of three-phase systems.Transformers
TransformersTowfiqur Rahman
油
A transformer is a device that changes alternating current (ac) electric power at one voltage level to ac power at another voltage level through magnetic induction. It consists of two or more coils wound around a core and linked by a magnetic field. An ideal transformer has no losses and the power input equals the power output. Real transformers have losses due to winding resistance, core losses, and leakage fluxes. The performance of real transformers can be modeled using an equivalent circuit with parameters determined from open-circuit and short-circuit tests. Transformer voltage regulation and efficiency are important performance metrics.Control chap2
Control chap2Mohd Ashraf Shabarshah
油
Here are the steps to solve for the transfer function G(s) = X2(s)/F(s) for the given system:
1. Draw the free body diagrams for both masses M1 and M2 showing all the forces acting on each mass.
2. Write the Newton's second law equation for M1:
(M1s2 + f1vs + k1)X1(s) - k2(X1(s) - X2(s)) = 0
3. Write the Newton's second law equation for M2:
-k2(X1(s) - X2(s)) + (M2s2 + f2vs + kUnit 2 -DC Motors ocnstruction and working.ppt
Unit 2 -DC Motors ocnstruction and working.pptNANDHAKUMARA10
油
This document focuses on the operation, performance, and characteristics of direct current (DC) motors, including shunt wound, series wound, and separately excited types. It covers essential concepts such as torque-speed characteristics, induced electromotive force (emf), and the distinction between armature and field windings in DC motors. Additionally, it provides calculations and examples related to the performance analysis and applications of DC motors in engineering.Lecture 04 transformers
Lecture 04 transformersBibek Chouhan
油
This document provides an overview of transformers and their operation. It discusses:
- The history and development of transformers from the 1880s to present day
- The basic components and construction of transformers
- How an ideal transformer works based on Faraday's law of induction
- How voltages and currents are related in an ideal transformer based on turn ratios
- How real transformers approximate ideal transformer behavior
- Examples of analyzing circuits containing transformers by referring their sides
- The theory of operation for real single-phase transformers based on mutual and leakage fluxesAC-Alternative Current & Circuit Analysis ( Full of Information )
AC-Alternative Current & Circuit Analysis ( Full of Information )Daffodil International University
油
The document provides an overview of alternating current (AC) and its applications in circuit analysis, emphasizing its importance in homes and businesses. It discusses the characteristics of AC, including its waveform types, phase relationships in various circuit configurations (resistive, inductive, and capacitive), and the mathematical principles involved in analysis. Additionally, it highlights the advantages of AC over direct current (DC), particularly in voltage transformation and suitability for long-distance transmission.Lecture-5-and-6-MIST-Spssssssssssecial (1).pdf
Lecture-5-and-6-MIST-Spssssssssssecial (1).pdfrakibulhasan941729
油
The document contains a series of EEE-related examination questions and lecture notes compiled by Rony Parvej for the Master of Science in Electrical and Electronic Engineering admission test at the Military Institute of Science and Technology (MIST). It covers various topics such as circuit theory, transformer characteristics, power factor, RLC circuits, and transformer operation principles. Additionally, it includes question formats like multiple choice, elaborative queries, and problem-solving tasks relevant to electrical engineering.Chapter 16
Chapter 16Tha Mike
油
This chapter discusses power and harmonics in nonsinusoidal systems. It covers average power calculation using Fourier series, RMS value calculation, power factor, and harmonic distortion. Power factor is defined as the ratio of average power to apparent power. Harmonics always increase RMS values but do not necessarily increase average power. Harmonics reduce the power factor for nonlinear loads fed by sinusoidal voltages. Three-phase systems can experience overloading of neutral conductors and capacitors due to harmonic currents.AC Machines Alternators and Induction Motors
AC Machines Alternators and Induction MotorsDr. Roger Rozario A P
油
The document provides a comprehensive overview of induction and synchronous machines, focusing on alternators, their working principles, construction, and various applications across automotive, marine, and power generation sectors. It covers theories of electromagnetic induction, voltage regulation methods, armature reactions, and techniques for determining synchronous impedance through open circuit and short circuit tests. Additionally, the document discusses the effects of load power factors on voltage regulation and calculates voltage regulation under various scenarios for alternators.Ism 11
Ism 11Dr. Roger Rozario A P
油
The document provides an extensive overview of induction and synchronous machines, focusing on alternators including their working principles, construction details, and electromagnetic induction principles. It discusses various characteristics such as synchronous reactance, impedance, voltage regulation, and methods for testing alternator performance like open circuit and short circuit tests. Additionally, it includes calculations for voltage regulation under different power factor conditions and highlights differences between pessimistic and optimistic methods in regulation assessment.Ac Power Problems And Measurement Sreevidhya@Students
Ac Power Problems And Measurement Sreevidhya@StudentsB Bhargav Reddy
油
The document discusses power analysis and harmonics in AC power systems. It covers topics such as true power and power factor, Fourier transforms, three-phase systems, harmonic problems caused by pulse width modulated motor drives, and IEC standards for harmonics and flicker. Measurement solutions for analyzing power parameters, harmonics, and transients are provided by the PM3000A power analyzer.Power system analysis in load flow analysis.pptx
Power system analysis in load flow analysis.pptxarunkumarg271
油
about the power system analysis in load flowLecture1
Lecture1Fahad Zia
油
Power systems can be modeled and analyzed using per-unit representations of components. Key models include:
1) Generator models that specify real and reactive power injection or terminal voltage and current.
2) Transformer models using an equivalent circuit with magnetizing reactance and resistance.
3) Load models like constant impedance, current, or power to represent different load characteristics.
4) Transmission lines modeled as series impedances.
The per-unit system allows analysis of different voltage levels on a common scale and simplifies modeling of components.Power system Analysis By Sharif Kakar
Power system Analysis By Sharif KakarSharif Ullah
油
The document provides an overview of power systems concepts including:
- Single-phase and three-phase power calculations including real, reactive, and apparent power.
- Modeling of common power system components like generators, transformers, loads, and transmission lines.
- The per-unit system used for power system analysis and its advantages.Ad
More from Andy Norris (6)
Me330 lecture5
Me330 lecture5Andy Norris
油
This document discusses modeling mechanical systems for control systems. It covers:
1) Newton's second law governs mechanical systems and results in equations of motion describing dynamical systems. These equations can be represented using block diagrams and Laplace transforms.
2) Modeling involves determining the equation of motion using free body diagrams and summing the forces. Mechanical components like springs, dampers and masses have characteristic force-velocity, force-displacement and impedance relationships.
3) Systems with multiple degrees of freedom require equations of motion equal to the number of independent motions. Transfer functions can be derived from the Laplace transform of the equations of motion.Me330 lecture4
Me330 lecture4Andy Norris
油
1. The document discusses different cases for taking the inverse Laplace transform of a function F(s), depending on the characteristics of the denominator of F(s).
2. If the denominator has real and distinct roots, one multiplies F(s) by the appropriate term and evaluates the residue at each root to find the inverse Laplace transform.
3. If there are real repeated roots, one multiplies F(s) by the appropriate power and differentiates to find all residues needed for the inverse Laplace transform.
4. If there are complex roots, one solves for the residues by balancing coefficients or factorizing, then combines like terms to find the inverse Laplace transform.Me330 lecture3
Me330 lecture3Andy Norris
油
This document discusses the process of solving differential equations representing dynamical systems using Laplace transforms. It involves 4 main steps: 1) Represent the differential equation in the Laplace domain as a "transfer function", 2) Transform the input function to the Laplace domain, 3) Multiply the transfer function by the input function, 4) Take the inverse Laplace transform to find the time domain response. It also discusses partial fraction expansion, which simplifies functions for taking the inverse Laplace transform using lookup tables. There are three cases for partial fraction expansion depending on the roots of the denominator polynomial.Me330 lecture2
Me330 lecture2Andy Norris
油
1) The document discusses complex numbers and the Laplace transform, which can convert differential equations describing dynamic systems into algebraic equations.
2) The Laplace transform represents functions in the complex s-domain and allows converting between the time and frequency domains.
3) The Laplace transform is a useful mathematical tool for control systems analysis and design by representing systems as transfer functions and enabling calculation of time-domain responses from frequency-domain inputs.Me330 lecture8
Me330 lecture8Andy Norris
油
The document discusses nonlinear systems and how they are often approximated as linear models within an acceptable operating range. It then describes how the nonlinear differential equations for a pendulum and inverted pendulum can be linearized by assuming small angles to develop linear models and transfer functions to represent the system response. The inverted pendulum is provided as an example of a commonly studied nonlinear control problem where the system is open-loop unstable unless a suitable force is applied to balance it.Me330 lecture1
Me330 lecture1Andy Norris
油
This document provides an overview and logistics for an ME 330 Control Systems course. It introduces the instructor, textbook, grading breakdown, software to be used, and course objectives. Key points are:
- Lectures on Mondays and Wednesdays from 7-8pm, labs on Tuesdays and Thursdays from 5:30-7pm
- The course aims to help students recognize, model, analyze, and design control systems using mathematical tools
- Control systems regulate processes using inputs, outputs, and feedback to handle disturbancesAd
Me330 lecture7
- 1. ME 330 Control Systems SP 2011 Lecture 7

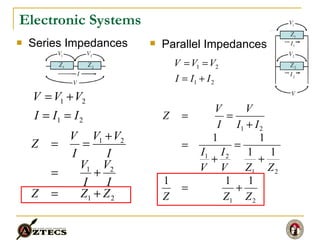

- 2. Electronic Systems Series Impedances Parallel Impedances
- 3. Electronic Systems Operational Amplifiers High input impedance, Z i = inf Low output impedance, Z o = 0 High gain, A = inf If v i+ is connected to ground, v i+ = 0, A v i+ v i- v o

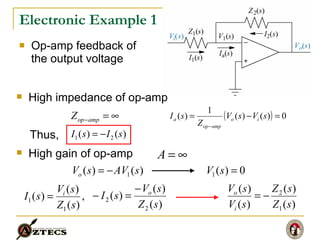

- 4. Electronic Example 1 Op-amp feedback of the output voltage High impedance of op-amp Thus, High gain of op-amp

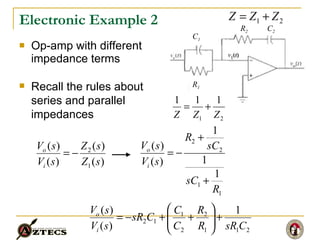

- 5. Electronic Example 2 Op-amp with different impedance terms C 1 R 1 R 2 C 2 Recall the rules about series and parallel impedances

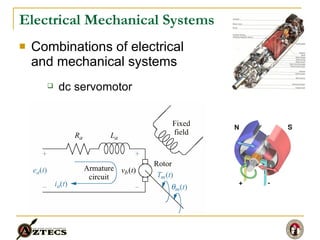

- 6. Electrical Mechanical Systems Combinations of electrical and mechanical systems dc servomotor

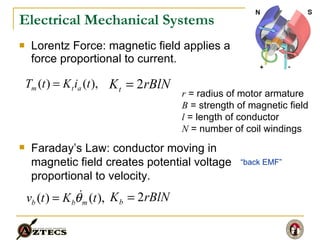

- 7. Electrical Mechanical Systems Lorentz Force: magnetic field applies a force proportional to current. r = radius of motor armature B = strength of magnetic field l = length of conductor N = number of coil windings Faradays Law: conductor moving in magnetic field creates potential voltage proportional to velocity. back EMF

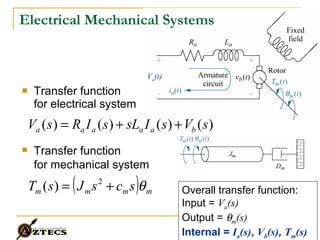

- 8. Transfer function for electrical system Electrical Mechanical Systems Overall transfer function: Input = V a (s) Output = m (s) Internal = I a (s) , V b (s) , T m (s) V a (t) Transfer function for mechanical system

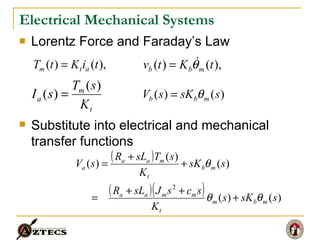

- 9. Electrical Mechanical Systems Lorentz Force and Faradays Law Substitute into electrical and mechanical transfer functions

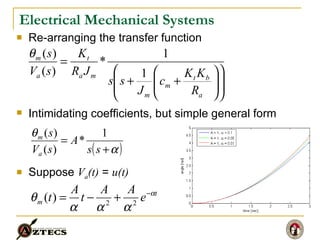

- 10. Electrical Mechanical Systems Re-arranging the transfer function Intimidating coefficients, but simple general form Suppose V a (t) = u(t)
- 11. Next Lectures Direct transfer function manipulation.
