Nat

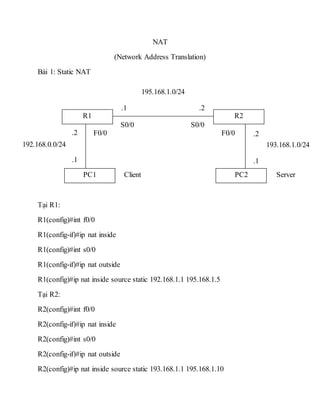

- 1. NAT
(Network Address Translation)
Bi 1: Static NAT
T畉i R1:
R1(config)#int f0/0
R1(config-if)#ip nat inside
R1(config)#int s0/0
R1(config-if)#ip nat outside
R1(config)#ip nat inside source static 192.168.1.1 195.168.1.5

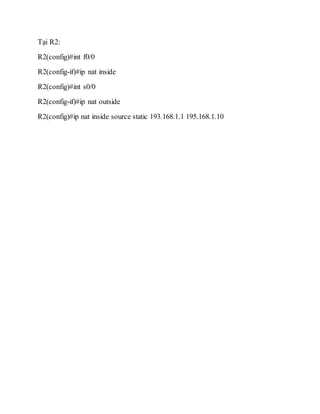

T畉i R2:
R2(config)#int f0/0
R2(config-if)#ip nat inside
R2(config)#int s0/0
R2(config-if)#ip nat outside
R2(config)#ip nat inside source static 193.168.1.1 195.168.1.10
R1
PC1
R2
PC2
195.168.1.0/24
.1 .2
S0/0
F0/0
S0/0
192.168.0.0/24 193.168.1.0/24
F0/0.2
.1
.2
.1
ServerClient

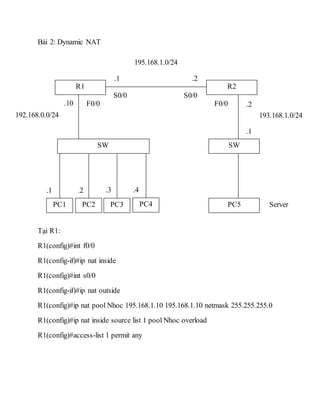

- 2. Bi 2: Dynamic NAT
T畉i R1:
R1(config)#int f0/0
R1(config-if)#ip nat inside
R1(config)#int s0/0
R1(config-if)#ip nat outside
R1(config)#ip nat pool Nhoc 195.168.1.10 195.168.1.10 netmask 255.255.255.0
R1(config)#ip nat inside source list 1 pool Nhoc overload
R1(config)#access-list 1 permit any
R1
SW
R2
SW
195.168.1.0/24
.1 .2
S0/0
F0/0
S0/0
192.168.0.0/24 193.168.1.0/24
F0/0
.2.1
.2
.1
PC1 PC2 PC3 PC4
.3 .4
PC5 Server
.10
