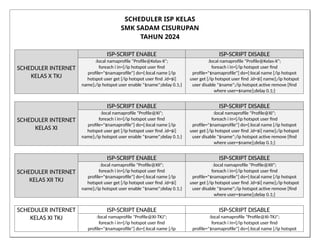

![SCHEDULER ISP KELAS
SMK SADAM CISURUPAN
TAHUN 2024
SCHEDULER INTERNET
KELAS X TKJ
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@Kelas-X";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@Kelas-X";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XI
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XI";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@XI";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XII TKJ
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XII";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@XII";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XI TKJ
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XI-TKJ";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
:local namaprofile "Profile@XI-TKJ";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot](https://image.slidesharecdn.com/schedulerispsekolah-241105022542-5302f724/85/PROGRAM-ENGGINSCHEDULER-ISP-SEKOLAH-docx-1-320.jpg)

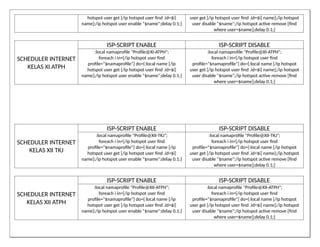

![hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XI ATPH
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XI-ATPH";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@XI-ATPH";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XII TKJ
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XII-TKJ";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@XII-TKJ";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}
SCHEDULER INTERNET
KELAS XII ATPH
ISP-SCRIPT ENABLE ISP-SCRIPT DISABLE
:local namaprofile "Profile@XII-ATPH";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip
hotspot user get [/ip hotspot user find .id=$i]
name];/ip hotspot user enable "$name";delay 0.1;}
:local namaprofile "Profile@XII-ATPH";
foreach i in=[/ip hotspot user find
profile="$namaprofile"] do={:local name [/ip hotspot
user get [/ip hotspot user find .id=$i] name];/ip hotspot
user disable "$name";/ip hotspot active remove [find
where user=$name];delay 0.1;}](https://image.slidesharecdn.com/schedulerispsekolah-241105022542-5302f724/85/PROGRAM-ENGGINSCHEDULER-ISP-SEKOLAH-docx-2-320.jpg)

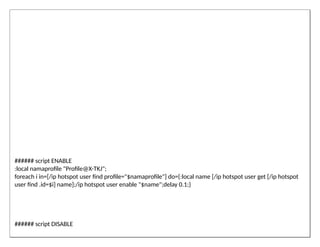

![###### script ENABLE
:local namaprofile "Profile@X-TKJ";
foreach i in=[/ip hotspot user find profile="$namaprofile"] do={:local name [/ip hotspot user get [/ip hotspot
user find .id=$i] name];/ip hotspot user enable "$name";delay 0.1;}
###### script DISABLE](https://image.slidesharecdn.com/schedulerispsekolah-241105022542-5302f724/85/PROGRAM-ENGGINSCHEDULER-ISP-SEKOLAH-docx-3-320.jpg)

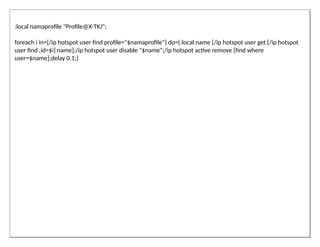

![:local namaprofile "Profile@X-TKJ";
foreach i in=[/ip hotspot user find profile="$namaprofile"] do={:local name [/ip hotspot user get [/ip hotspot
user find .id=$i] name];/ip hotspot user disable "$name";/ip hotspot active remove [find where
user=$name];delay 0.1;}](https://image.slidesharecdn.com/schedulerispsekolah-241105022542-5302f724/85/PROGRAM-ENGGINSCHEDULER-ISP-SEKOLAH-docx-4-320.jpg)
