unit II_2_i.pptx
Download as PPTX, PDF0 likes22 views
The document discusses different searching methods like linear search and binary search. It provides steps and algorithms for linear search and binary search. Linear search is the simplest searching method that sequentially checks each element of a list to find the target element. Binary search requires a sorted list and compares the target element to the middle element of the list to determine which half of the list to search next.
1 of 12
Download to read offline
![Linear Search
• Given an array arr[] of N elements, the task is to write a
function to search a given element x in arr[].
• Iterate from 0 to N-1 and compare the value of every index with
x if they match return index.](https://image.slidesharecdn.com/unitii2i-230215230150-7e4c5bcc/85/unit-II_2_i-pptx-3-320.jpg)
![Steps for Linear Search
• Start from the leftmost element of arr[] and one by one compare
x with each element of arr[]
• If x matches with an element, return the index.
• If x doesn’t match with any of the elements, return -1.](https://image.slidesharecdn.com/unitii2i-230215230150-7e4c5bcc/85/unit-II_2_i-pptx-4-320.jpg)
![Algorithm for Linear Search
• algorithm Seqnl_Search(list, item)
• Pre: list != ;
• Post: return the index of the item if found, otherwise: 1
• index <- fi
• while index < list.Cnt and list[index] != item //cnt: counter variable
• index <- index + 1
• end while
• if index < list.Cnt and list[index] = item
• return index
• end if
• return: 1](https://image.slidesharecdn.com/unitii2i-230215230150-7e4c5bcc/85/unit-II_2_i-pptx-5-320.jpg)
Recommended
Searching techniques
Searching techniquesArchana Burujwale
Ìý
Sequential and interval searching algorithms are used to search for elements in data structures. Sequential searches, like linear search, sequentially check each element until finding a match. Interval searches, like binary search, target the center of the search structure and divide the search space in half with each iteration. Other searching techniques include sentinel search, which adds a sentinel value to reduce comparisons, and Fibonacci search, which divides the search space into unequal parts based on Fibonacci numbers.Lecture_Oct26.pptx
Lecture_Oct26.pptxSylrizcinMarieManzo3
Ìý
Searching algorithms are used to find elements within datasets. Sequential search linearly checks each element until a match is found, taking O(n) time on average. Interval search algorithms like binary search target the center of a sorted structure and divide the search space in half at each step, taking O(log n) time on average. Jump search checks fewer elements than linear search by jumping ahead by a fixed number of steps or block size, typically the square root of the list length. Interpolation search may check non-middle indexes based on the searched value, working best for uniformly distributed sorted data.Data structure Unit - II Searching and Sorting.pptx
Data structure Unit - II Searching and Sorting.pptxgavanisanjana
Ìý
Use the PPT for searching and sorting BCA DATA STRUCTURES SEARCHING AND SORTING MRS.SOWMYA JYOTHI
BCA DATA STRUCTURES SEARCHING AND SORTING MRS.SOWMYA JYOTHISowmya Jyothi
Ìý
1. The document discusses various searching and sorting algorithms. It describes linear search, which compares each element to find a match, and binary search, which eliminates half the elements after each comparison in a sorted array.
2. It also explains bubble sort, which bubbles larger values up and smaller values down through multiple passes. Radix sort sorts elements based on individual digits or characters.
3. Selection sort and merge sort are also summarized. Merge sort divides the array into single elements and then merges the sorted sublists, while selection sort finds the minimum element and swaps it into place in each pass.searching techniques.pptx
searching techniques.pptxDr.Shweta
Ìý
Searching is a fundamental operation in data structures and algorithms, and it involves locating a specific item within a collection of data. Various searching techniques exist, and the choice of which one to use depends on factors like the data structure, the nature of the data, and the efficiency requirements.Data operatons & searching and sorting algorithms
Data operatons & searching and sorting algorithmsAnushdika Jeganathan
Ìý
This document discusses and compares various sorting and searching algorithms. It begins with an introduction to algorithm analysis and complexity measures like time and space complexity. It then defines sorting as arranging data in a particular order and searching as finding a particular element. Common sorting algorithms described include bubble sort, insertion sort, bucket sort, selection sort, heap sort, and merge sort. Searching algorithms covered are linear search and binary search. The document provides examples and pseudocode to explain how each algorithm works. It concludes that merge sort and bubble sort would be suitable for real-world scenarios based on their properties.4- searching.ppt
4- searching.pptzabihniazai1
Ìý
This document describes and compares linear search and binary search algorithms. It contains the following key points:
1) Linear search sequentially checks each element of a list one-by-one until the target element is found. It is simple but inefficient, especially for large lists.
2) Binary search works on a sorted list by checking the middle element first. It then eliminates half of the remaining list and searches the other half recursively until the target is found. It is more efficient than linear search for large sorted lists.
3) Pseudocode algorithms are provided for both linear search and binary search to illustrate the search process step-by-step.
Presentation
Presentationzohaib arif
Ìý
This document discusses two methods for searching in arrays: sequential search and binary search. Sequential search involves checking each element of the array sequentially until the desired value is found. Binary search works by comparing the target value to the middle element of a sorted array, then searching the upper or lower half. Binary search is faster than sequential search as it reduces the search space by half with each comparison, with an average efficiency of O(log n) comparisons versus O(n) for sequential search. The document provides pseudocode examples and compares the properties of each search method.Ocw chp6 2searchbinary
Ocw chp6 2searchbinaryPrashant Rai
Ìý
The document discusses binary search and its advantages over sequential search. It explains that binary search improves search efficiency by dividing the search space in half at each step, allowing it to find an item in a sorted list in O(log n) time compared to O(n) for sequential search. The key steps of binary search are outlined, including comparing the search key to the middle element, and recursively searching either the left or right half depending on whether the key is smaller or larger than the middle element. Examples are provided to illustrate how binary search works on a sorted array to find a target value.DSA Lec 5+6(Search+Sort) (1).pdf
DSA Lec 5+6(Search+Sort) (1).pdfMustafaJutt4
Ìý
This document discusses sequential and interval searching techniques in data structures. It provides examples of linear search and binary search algorithms. Linear search sequentially checks each element to find a match, having a worst-case complexity of O(n). Binary search repeatedly targets the midpoint of a sorted array, dividing the search space in half, with a worst-case complexity of O(log n). Selection sort is also discussed as an example of an iterative sorting algorithm, which finds the minimum element and places it in the first position in each pass.Searching
SearchingAshim Lamichhane
Ìý
Searching algorithm Data structure and algorithm, covers linear/sequential search, binary search similarly hashing
git: https://github.com/ashim888/dataStructureAndAlgorithm
personarl: ashimlamichhane.com.npseaching internal 2 ppt
seaching internal 2 pptSubhrasisBiswal1
Ìý
this is the very imporantant in data struvture.Searching is a fundamental operation in data structures and plays a crucial role in various computer science and programming tasks. It involves looking for a specific element, value, or key within a given data structure to determine whether it exists or to retrieve it if found. The efficiency and effectiveness of searching algorithms can vary depending on the data structure being used and the specific requirements of the task. Here are some common data structures and descriptions of how searching works in each of them:
Searching Algorithms:
Linear Search: A basic algorithm that sequentially checks each element in a data structure until a match is found.
Binary Search: A more efficient algorithm for sorted arrays or lists that repeatedly divides the search interval in half.
Hashing: Using a hash function to map keys to specific locations for quick retrieval (e.g., in hash tables).
Data Structures for Searching:
Arrays: Basic data structure often used in linear searches.
Lists: Linked lists or dynamic arrays can be used for searching.
Trees:
Binary Search Tree (BST): A binary tree where the left subtree contains values less than the root, and the right subtree contains values greater than the root.
Balanced Trees: Trees like AVL and Red-Black trees maintain balance for efficient searching.
Heaps: Used for priority queues and can support efficient operations for finding the minimum or maximum.
Hash Tables: Utilizes hash functions for quick lookups.
Search Variations:
Searching for Minimum/Maximum: Algorithms designed to find the minimum or maximum element in a data structure efficiently.
Substring Search: Searching for a specific substring within a larger text or string.
Pattern Matching: Searching for a specific pattern or sequence of elements within a data structure.
Advanced Search Techniques:
Trie: A tree-like data structure used for efficient string searching and storage.
Bloom Filter: A probabilistic data structure for quickly checking whether an element is a member of a set.
K-Dimensional Trees: Used for multidimensional data, like spatial searching in geographic information systems.
Optimizations and Indexing:
Indexing: Techniques to create indexes or data structures that accelerate searching in large datasets.
Skip Lists: A data structure that uses multiple levels of linked lists to speed up searches.
Parallel and Distributed Searching:
Parallel Search Algorithms: Techniques for searching in parallel processing environments.
Distributed Search: Strategies for searching in distributed systems or databases.
Search Complexity and Analysis:
Time Complexity: Analyzing the efficiency of search algorithms in terms of the number of operations required.
Space Complexity: Analyzing the memory usage of search data structures.
Searching in Specialized Applications:
Graph Search: Techniques for traversing and searching in graphs.
Geospatial Search: Searching .linear search and binary search
linear search and binary searchZia Ush Shamszaman
Ìý
linear search and binary search, Class lecture of Data Structure and Algorithms and Python.
Stack, Queue, Tree, Python, Python Code, Computer Science, Data, Data Analysis, Machine Learning, Artificial Intellegence, Deep Learning, Programming, Information Technology, Psuedocide, Tree, pseudocode, Binary Tree, Binary Search Tree, implementation, Binary search, linear search, Binary search operation, real-life example of binary search, linear search operation, real-life example of linear search, example bubble sort, sorting, insertion sort example, stack implementation, queue implementation, binary tree implementation, priority queue, binary heap, binary heap implementation, object-oriented programming, def, in BST, Binary search tree, Red-Black tree, Splay Tree, Problem-solving using Binary tree, problem-solving using BST, inorder, preorder, postorderSearching & Algorithms IN DATA STRUCTURES
Searching & Algorithms IN DATA STRUCTURESRAKSHITDOGRA1
Ìý
Searching & Algorithms IN DATA STRUCTURES
TOPICS INCLUDED:
1. Sequential search
2. Binary search
3. Linear search
4. List search
data_structure_Chapter two_computer.pptx
data_structure_Chapter two_computer.pptxMohammed472103
Ìý
The document discusses various searching and sorting algorithms that use the divide and conquer approach. It describes linear search, binary search, and merge sort algorithms. Linear search has a time complexity of O(n) as it must examine each element to find the target. Binary search has a time complexity of O(log n) as it divides the search space in half each iteration. Merge sort also has a time complexity of O(n log n) as it divides the list into single elements and then merges them back together in sorted order.Data Structures_ Sorting & Searching
Data Structures_ Sorting & SearchingThenmozhiK5
Ìý
The document discusses various searching and sorting algorithms. It begins by defining searching as finding an item in a list. It describes sequential and binary search techniques. For sorting, it covers bubble, selection, insertion, merge, quick and heap sorts. It provides pseudocode examples and analyzes the time complexity of algorithms like selection sort and quicksort. Key aspects covered include the divide and conquer approach of quicksort and the efficiency of various sorting methods.DS - Unit 2 FINAL (2).pptx
DS - Unit 2 FINAL (2).pptxprakashvs7
Ìý
The document discusses various searching and sorting algorithms. It begins by defining searching as finding an item in a list. It describes sequential and binary search techniques. For sorting, it covers bubble, selection, insertion, merge, quick and heap sorts. It provides pseudocode examples and analyzes the time complexity of algorithms like selection sort and quicksort. Key aspects covered include the divide and conquer approach of quicksort and the efficiency of various sorting methods.Searching_Sorting.pptx
Searching_Sorting.pptx21BD1A058RSahithi
Ìý
The document provides information about different searching and sorting algorithms. It defines linear search and binary search as two common searching methods. Linear search sequentially checks each element until a match is found, while binary search can only be used on a sorted list and successively divides the list in half. The document also describes selection sort, bubble sort, and insertion sort sorting algorithms. Selection sort finds the minimum element and swaps it into position, bubble sort compares and swaps adjacent elements, and insertion sort inserts elements into the sorted position.Searching techniques in Data Structure And Algorithm
Searching techniques in Data Structure And Algorithm03446940736
Ìý
Searching techniques in Data Structure And Algorithm
with animations with algorithms and details
try it to believe it
best way to explain every word
cs702 ppt.ppt
cs702 ppt.pptJavedIqbal398171
Ìý
The document discusses various searching algorithms and their time complexities. It describes linear search, binary search, jump search, interpolation search, exponential search, sublist search, Fibonacci search. Linear search has a time complexity of O(n) while binary search has O(log n) time complexity. Binary search uses a divide and conquer approach to search sorted data more efficiently. Exponential and Fibonacci searches also have O(log n) time complexity for bounded arrays.Dsa – data structure and algorithms searching
Dsa – data structure and algorithms searchingsajinis3
Ìý
The document discusses different searching algorithms like linear search and binary search. Linear search checks each element in a list sequentially until the target element is found. It has O(n) time complexity in worst case. Binary search works on sorted arrays by comparing the target value to the middle element and eliminating half of remaining elements in each step. It has O(log n) time complexity. Both algorithms have O(1) space complexity as they require storage for only one element.programming in C
programming in CADITHYAM19
Ìý
Linear search is a simple algorithm for finding an element within a list. It involves traversing the list sequentially from the beginning, comparing each element to the target value until a match is found or the end of the list is reached. The steps are to read the search element, compare it to the first list element, check for a match, and if no match then compare to the next element until the end of the list. It has an complexity of O(n) but is practical for small lists or a single search of an unordered list.Data Structure & Algorithms - Operations
Data Structure & Algorithms - Operationsbabuk110
Ìý
The document discusses various data structure operations like traversing, searching, inserting, updating, deleting, sorting, and merging. It then provides examples of how these operations would be used on a membership file containing member details. The document also introduces abstract data types, defining them as a type plus functions and behavior. It discusses abstract data type operations like create, display, insert, delete, and modify. Finally, it covers linear and binary search algorithms, providing pseudocode examples and comparing their advantages and disadvantages.1.4 Sorting.pptx
1.4 Sorting.pptxSujan527908
Ìý
Sorting techniques can arrange data in ascending or descending order. Common sorting algorithms discussed include insertion sort, selection sort, bubble sort, merge sort, and quick sort. Insertion sort works by iterating through an unsorted array and inserting each element into the correct position in a growing sorted subset. Selection sort finds the minimum element and swaps it into the front at each step. Bubble sort compares and swaps adjacent elements. Merge sort divides arrays into halves and then merges the sorted halves. Quick sort selects a pivot element and partitions the array into subarrays based on element values relative to the pivot.Binary search algorithm.pptx
Binary search algorithm.pptxbhuvansaachi18
Ìý
This document describes the binary search algorithm. It begins with an introduction that defines binary search as a searching algorithm used on a sorted array that repeatedly divides the search interval in half. It then provides an overview of the algorithm, explaining that it divides the search space, compares the middle element to the target, and recursively searches either the left or right half. The document also includes pseudocode for an implementation of binary search and analyzes its time and space complexity.
Unit 4_Network Layer_Part II.pptx
Unit 4_Network Layer_Part II.pptxHODElex
Ìý
The document discusses network layer concepts including routing, forwarding, routing algorithms, and routing protocols.
It begins by explaining the duties of the network layer including interconnecting networks, assigning unique addresses, and encapsulating data from the transport layer. It then discusses routing concepts such as delivery, forwarding using techniques like next-hop routing, and routing tables.
Common routing algorithms are also summarized like distance vector routing using RIP, link state routing using OSPF, and path vector routing. Popular unicast routing protocols and multicast protocols are also briefly mentioned including MOSPF, DVMRP, CBT, and PIM.Unit VI - Graphs.ppt
Unit VI - Graphs.pptHODElex
Ìý
The document defines key concepts related to graphs, including types of graphs (directed, undirected, weighted, unweighted), graph terminology (vertex, edge, path, cycle), representations of graphs (adjacency matrix, adjacency list), and algorithms for traversing graphs (breadth-first search, depth-first search). It also discusses minimum spanning trees, spanning tree properties, and algorithms for finding minimum spanning trees like Kruskal's and Prim's algorithms.More Related Content
Similar to unit II_2_i.pptx (20)
Presentation
Presentationzohaib arif
Ìý
This document discusses two methods for searching in arrays: sequential search and binary search. Sequential search involves checking each element of the array sequentially until the desired value is found. Binary search works by comparing the target value to the middle element of a sorted array, then searching the upper or lower half. Binary search is faster than sequential search as it reduces the search space by half with each comparison, with an average efficiency of O(log n) comparisons versus O(n) for sequential search. The document provides pseudocode examples and compares the properties of each search method.Ocw chp6 2searchbinary
Ocw chp6 2searchbinaryPrashant Rai
Ìý
The document discusses binary search and its advantages over sequential search. It explains that binary search improves search efficiency by dividing the search space in half at each step, allowing it to find an item in a sorted list in O(log n) time compared to O(n) for sequential search. The key steps of binary search are outlined, including comparing the search key to the middle element, and recursively searching either the left or right half depending on whether the key is smaller or larger than the middle element. Examples are provided to illustrate how binary search works on a sorted array to find a target value.DSA Lec 5+6(Search+Sort) (1).pdf
DSA Lec 5+6(Search+Sort) (1).pdfMustafaJutt4
Ìý
This document discusses sequential and interval searching techniques in data structures. It provides examples of linear search and binary search algorithms. Linear search sequentially checks each element to find a match, having a worst-case complexity of O(n). Binary search repeatedly targets the midpoint of a sorted array, dividing the search space in half, with a worst-case complexity of O(log n). Selection sort is also discussed as an example of an iterative sorting algorithm, which finds the minimum element and places it in the first position in each pass.Searching
SearchingAshim Lamichhane
Ìý
Searching algorithm Data structure and algorithm, covers linear/sequential search, binary search similarly hashing
git: https://github.com/ashim888/dataStructureAndAlgorithm
personarl: ashimlamichhane.com.npseaching internal 2 ppt
seaching internal 2 pptSubhrasisBiswal1
Ìý
this is the very imporantant in data struvture.Searching is a fundamental operation in data structures and plays a crucial role in various computer science and programming tasks. It involves looking for a specific element, value, or key within a given data structure to determine whether it exists or to retrieve it if found. The efficiency and effectiveness of searching algorithms can vary depending on the data structure being used and the specific requirements of the task. Here are some common data structures and descriptions of how searching works in each of them:
Searching Algorithms:
Linear Search: A basic algorithm that sequentially checks each element in a data structure until a match is found.
Binary Search: A more efficient algorithm for sorted arrays or lists that repeatedly divides the search interval in half.
Hashing: Using a hash function to map keys to specific locations for quick retrieval (e.g., in hash tables).
Data Structures for Searching:
Arrays: Basic data structure often used in linear searches.
Lists: Linked lists or dynamic arrays can be used for searching.
Trees:
Binary Search Tree (BST): A binary tree where the left subtree contains values less than the root, and the right subtree contains values greater than the root.
Balanced Trees: Trees like AVL and Red-Black trees maintain balance for efficient searching.
Heaps: Used for priority queues and can support efficient operations for finding the minimum or maximum.
Hash Tables: Utilizes hash functions for quick lookups.
Search Variations:
Searching for Minimum/Maximum: Algorithms designed to find the minimum or maximum element in a data structure efficiently.
Substring Search: Searching for a specific substring within a larger text or string.
Pattern Matching: Searching for a specific pattern or sequence of elements within a data structure.
Advanced Search Techniques:
Trie: A tree-like data structure used for efficient string searching and storage.
Bloom Filter: A probabilistic data structure for quickly checking whether an element is a member of a set.
K-Dimensional Trees: Used for multidimensional data, like spatial searching in geographic information systems.
Optimizations and Indexing:
Indexing: Techniques to create indexes or data structures that accelerate searching in large datasets.
Skip Lists: A data structure that uses multiple levels of linked lists to speed up searches.
Parallel and Distributed Searching:
Parallel Search Algorithms: Techniques for searching in parallel processing environments.
Distributed Search: Strategies for searching in distributed systems or databases.
Search Complexity and Analysis:
Time Complexity: Analyzing the efficiency of search algorithms in terms of the number of operations required.
Space Complexity: Analyzing the memory usage of search data structures.
Searching in Specialized Applications:
Graph Search: Techniques for traversing and searching in graphs.
Geospatial Search: Searching .linear search and binary search
linear search and binary searchZia Ush Shamszaman
Ìý
linear search and binary search, Class lecture of Data Structure and Algorithms and Python.
Stack, Queue, Tree, Python, Python Code, Computer Science, Data, Data Analysis, Machine Learning, Artificial Intellegence, Deep Learning, Programming, Information Technology, Psuedocide, Tree, pseudocode, Binary Tree, Binary Search Tree, implementation, Binary search, linear search, Binary search operation, real-life example of binary search, linear search operation, real-life example of linear search, example bubble sort, sorting, insertion sort example, stack implementation, queue implementation, binary tree implementation, priority queue, binary heap, binary heap implementation, object-oriented programming, def, in BST, Binary search tree, Red-Black tree, Splay Tree, Problem-solving using Binary tree, problem-solving using BST, inorder, preorder, postorderSearching & Algorithms IN DATA STRUCTURES
Searching & Algorithms IN DATA STRUCTURESRAKSHITDOGRA1
Ìý
Searching & Algorithms IN DATA STRUCTURES
TOPICS INCLUDED:
1. Sequential search
2. Binary search
3. Linear search
4. List search
data_structure_Chapter two_computer.pptx
data_structure_Chapter two_computer.pptxMohammed472103
Ìý
The document discusses various searching and sorting algorithms that use the divide and conquer approach. It describes linear search, binary search, and merge sort algorithms. Linear search has a time complexity of O(n) as it must examine each element to find the target. Binary search has a time complexity of O(log n) as it divides the search space in half each iteration. Merge sort also has a time complexity of O(n log n) as it divides the list into single elements and then merges them back together in sorted order.Data Structures_ Sorting & Searching
Data Structures_ Sorting & SearchingThenmozhiK5
Ìý
The document discusses various searching and sorting algorithms. It begins by defining searching as finding an item in a list. It describes sequential and binary search techniques. For sorting, it covers bubble, selection, insertion, merge, quick and heap sorts. It provides pseudocode examples and analyzes the time complexity of algorithms like selection sort and quicksort. Key aspects covered include the divide and conquer approach of quicksort and the efficiency of various sorting methods.DS - Unit 2 FINAL (2).pptx
DS - Unit 2 FINAL (2).pptxprakashvs7
Ìý
The document discusses various searching and sorting algorithms. It begins by defining searching as finding an item in a list. It describes sequential and binary search techniques. For sorting, it covers bubble, selection, insertion, merge, quick and heap sorts. It provides pseudocode examples and analyzes the time complexity of algorithms like selection sort and quicksort. Key aspects covered include the divide and conquer approach of quicksort and the efficiency of various sorting methods.Searching_Sorting.pptx
Searching_Sorting.pptx21BD1A058RSahithi
Ìý
The document provides information about different searching and sorting algorithms. It defines linear search and binary search as two common searching methods. Linear search sequentially checks each element until a match is found, while binary search can only be used on a sorted list and successively divides the list in half. The document also describes selection sort, bubble sort, and insertion sort sorting algorithms. Selection sort finds the minimum element and swaps it into position, bubble sort compares and swaps adjacent elements, and insertion sort inserts elements into the sorted position.Searching techniques in Data Structure And Algorithm
Searching techniques in Data Structure And Algorithm03446940736
Ìý
Searching techniques in Data Structure And Algorithm
with animations with algorithms and details
try it to believe it
best way to explain every word
cs702 ppt.ppt
cs702 ppt.pptJavedIqbal398171
Ìý
The document discusses various searching algorithms and their time complexities. It describes linear search, binary search, jump search, interpolation search, exponential search, sublist search, Fibonacci search. Linear search has a time complexity of O(n) while binary search has O(log n) time complexity. Binary search uses a divide and conquer approach to search sorted data more efficiently. Exponential and Fibonacci searches also have O(log n) time complexity for bounded arrays.Dsa – data structure and algorithms searching
Dsa – data structure and algorithms searchingsajinis3
Ìý
The document discusses different searching algorithms like linear search and binary search. Linear search checks each element in a list sequentially until the target element is found. It has O(n) time complexity in worst case. Binary search works on sorted arrays by comparing the target value to the middle element and eliminating half of remaining elements in each step. It has O(log n) time complexity. Both algorithms have O(1) space complexity as they require storage for only one element.programming in C
programming in CADITHYAM19
Ìý
Linear search is a simple algorithm for finding an element within a list. It involves traversing the list sequentially from the beginning, comparing each element to the target value until a match is found or the end of the list is reached. The steps are to read the search element, compare it to the first list element, check for a match, and if no match then compare to the next element until the end of the list. It has an complexity of O(n) but is practical for small lists or a single search of an unordered list.Data Structure & Algorithms - Operations
Data Structure & Algorithms - Operationsbabuk110
Ìý
The document discusses various data structure operations like traversing, searching, inserting, updating, deleting, sorting, and merging. It then provides examples of how these operations would be used on a membership file containing member details. The document also introduces abstract data types, defining them as a type plus functions and behavior. It discusses abstract data type operations like create, display, insert, delete, and modify. Finally, it covers linear and binary search algorithms, providing pseudocode examples and comparing their advantages and disadvantages.1.4 Sorting.pptx
1.4 Sorting.pptxSujan527908
Ìý
Sorting techniques can arrange data in ascending or descending order. Common sorting algorithms discussed include insertion sort, selection sort, bubble sort, merge sort, and quick sort. Insertion sort works by iterating through an unsorted array and inserting each element into the correct position in a growing sorted subset. Selection sort finds the minimum element and swaps it into the front at each step. Bubble sort compares and swaps adjacent elements. Merge sort divides arrays into halves and then merges the sorted halves. Quick sort selects a pivot element and partitions the array into subarrays based on element values relative to the pivot.Binary search algorithm.pptx
Binary search algorithm.pptxbhuvansaachi18
Ìý
This document describes the binary search algorithm. It begins with an introduction that defines binary search as a searching algorithm used on a sorted array that repeatedly divides the search interval in half. It then provides an overview of the algorithm, explaining that it divides the search space, compares the middle element to the target, and recursively searches either the left or right half. The document also includes pseudocode for an implementation of binary search and analyzes its time and space complexity.More from HODElex (7)
Unit 4_Network Layer_Part II.pptx
Unit 4_Network Layer_Part II.pptxHODElex
Ìý
The document discusses network layer concepts including routing, forwarding, routing algorithms, and routing protocols.
It begins by explaining the duties of the network layer including interconnecting networks, assigning unique addresses, and encapsulating data from the transport layer. It then discusses routing concepts such as delivery, forwarding using techniques like next-hop routing, and routing tables.
Common routing algorithms are also summarized like distance vector routing using RIP, link state routing using OSPF, and path vector routing. Popular unicast routing protocols and multicast protocols are also briefly mentioned including MOSPF, DVMRP, CBT, and PIM.Unit VI - Graphs.ppt
Unit VI - Graphs.pptHODElex
Ìý
The document defines key concepts related to graphs, including types of graphs (directed, undirected, weighted, unweighted), graph terminology (vertex, edge, path, cycle), representations of graphs (adjacency matrix, adjacency list), and algorithms for traversing graphs (breadth-first search, depth-first search). It also discusses minimum spanning trees, spanning tree properties, and algorithms for finding minimum spanning trees like Kruskal's and Prim's algorithms.IEEE and Lower Level LAN Protocols.ppt
IEEE and Lower Level LAN Protocols.pptHODElex
Ìý
The chapter discusses media level protocols including CSMA/CD, token passing, and polling. It describes the IEEE standards that apply to LANs based on different protocols. The key protocols discussed are Ethernet (CSMA/CD) under IEEE 802.3, token ring under IEEE 802.5, and token bus under IEEE 802.4. The chapter also provides an overview of the IEEE organization and its role in setting networking standards, particularly for the physical and data link layers.I & E Tutorials.pdf
I & E Tutorials.pdfHODElex
Ìý
The documents provide tutorials on various business topics including strategy designing, idea generation, business planning, pitch decks, business strategy, and patent drafting. The tutorials aim to teach learners how to design a marketing strategy, generate novel ideas, prepare business plans and pitch decks, develop business strategy, and draft patents. They provide outlines and guidelines for learners to follow on each topic.wireless lan presentation.ppt
wireless lan presentation.pptHODElex
Ìý
- Wireless LANs use either wired or wireless infrastructure to connect computing devices within a local area. Wireless LANs provide flexibility, portability, mobility and ease of installation compared to wired LANs.
- The IEEE 802.11 standard defines the physical and data link layers for wireless LANs. It addresses issues like power management, security, and bandwidth that are important for wireless networks.
- The MAC layer uses either a contention-based distributed coordination function (DCF) or contention-free point coordination function (PCF). DCF uses CSMA/CA for channel access while PCF uses polling for contention-free access.Unit II_Searching and Sorting Algorithms.ppt
Unit II_Searching and Sorting Algorithms.pptHODElex
Ìý
The document discusses various searching and sorting algorithms and data structures. It covers linear search and binary search algorithms. Linear search sequentially checks each element of a list to find a target value, while binary search works on a sorted list by dividing the search space in half at each step based on comparing the target to the middle element. The document also discusses asymptotic analysis techniques like Big O notation for analyzing algorithms' time and space complexity as input size increases.Unit 3_Network Layer_Part II.pptx
Unit 3_Network Layer_Part II.pptxHODElex
Ìý
The document provides information about network layer concepts including routing, forwarding, routing tables, routing algorithms, and routing protocols.
It discusses key network layer duties like interconnecting networks, assigning unique addresses, and encapsulating data for transfer between networks. Forwarding techniques like next-hop routing and network-specific routing are covered. Popular routing algorithms like distance vector routing, link state routing, and path vector routing are summarized.
Common routing protocols for both unicast (RIP) and multicast (MOSPF, DVMRP, CBT, PIM) are introduced along with their basic operations and differences between source-based and group-shared routing trees. IPv4 addressing and IPv6 improvements like larger addressesRecently uploaded (20)
Optimization of Cumulative Energy, Exergy Consumption and Environmental Life ...
Optimization of Cumulative Energy, Exergy Consumption and Environmental Life ...J. Agricultural Machinery
Ìý
Optimal use of resources, including energy, is one of the most important principles in modern and sustainable agricultural systems. Exergy analysis and life cycle assessment were used to study the efficient use of inputs, energy consumption reduction, and various environmental effects in the corn production system in Lorestan province, Iran. The required data were collected from farmers in Lorestan province using random sampling. The Cobb-Douglas equation and data envelopment analysis were utilized for modeling and optimizing cumulative energy and exergy consumption (CEnC and CExC) and devising strategies to mitigate the environmental impacts of corn production. The Cobb-Douglas equation results revealed that electricity, diesel fuel, and N-fertilizer were the major contributors to CExC in the corn production system. According to the Data Envelopment Analysis (DEA) results, the average efficiency of all farms in terms of CExC was 94.7% in the CCR model and 97.8% in the BCC model. Furthermore, the results indicated that there was excessive consumption of inputs, particularly potassium and phosphate fertilizers. By adopting more suitable methods based on DEA of efficient farmers, it was possible to save 6.47, 10.42, 7.40, 13.32, 31.29, 3.25, and 6.78% in the exergy consumption of diesel fuel, electricity, machinery, chemical fertilizers, biocides, seeds, and irrigation, respectively.
Best KNow Hydrogen Fuel Production in the World The cost in USD kwh for H2
Best KNow Hydrogen Fuel Production in the World The cost in USD kwh for H2Daniel Donatelli
Ìý
The cost in USD/kwh for H2
Daniel Donatelli
Secure Supplies Group
Index
• Introduction - Page 3
• The Need for Hydrogen Fueling - Page 5
• Pure H2 Fueling Technology - Page 7
• Blend Gas Fueling: A Transition Strategy - Page 10
• Performance Metrics: H2 vs. Fossil Fuels - Page 12
• Cost Analysis and Economic Viability - Page 15
• Innovations Driving Leadership - Page 18
• Laminar Flame Speed Adjustment
• Heat Management Systems
• The Donatelli Cycle
• Non-Carnot Cycle Applications
• Case Studies and Real-World Applications - Page 22
• Conclusion: Secure Supplies’ Leadership in Hydrogen Fueling - Page 27
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...Thane Heins NOBEL PRIZE WINNING ENERGY RESEARCHER
Ìý
Preface: The ReGenX Generator innovation operates with a US Patented Frequency Dependent Load
Current Delay which delays the creation and storage of created Electromagnetic Field Energy around
the exterior of the generator coil. The result is the created and Time Delayed Electromagnetic Field
Energy performs any magnitude of Positive Electro-Mechanical Work at infinite efficiency on the
generator's Rotating Magnetic Field, increasing its Kinetic Energy and increasing the Kinetic Energy of
an EV or ICE Vehicle to any magnitude without requiring any Externally Supplied Input Energy. In
Electricity Generation applications the ReGenX Generator innovation now allows all electricity to be
generated at infinite efficiency requiring zero Input Energy, zero Input Energy Cost, while producing
zero Greenhouse Gas Emissions, zero Air Pollution and zero Nuclear Waste during the Electricity
Generation Phase. In Electric Motor operation the ReGen-X Quantum Motor now allows any
magnitude of Work to be performed with zero Electric Input Energy.
Demonstration Protocol: The demonstration protocol involves three prototypes;
1. Protytpe #1, demonstrates the ReGenX Generator's Load Current Time Delay when compared
to the instantaneous Load Current Sine Wave for a Conventional Generator Coil.
2. In the Conventional Faraday Generator operation the created Electromagnetic Field Energy
performs Negative Work at infinite efficiency and it reduces the Kinetic Energy of the system.
3. The Magnitude of the Negative Work / System Kinetic Energy Reduction (in Joules) is equal to
the Magnitude of the created Electromagnetic Field Energy (also in Joules).
4. When the Conventional Faraday Generator is placed On-Load, Negative Work is performed and
the speed of the system decreases according to Lenz's Law of Induction.
5. In order to maintain the System Speed and the Electric Power magnitude to the Loads,
additional Input Power must be supplied to the Prime Mover and additional Mechanical Input
Power must be supplied to the Generator's Drive Shaft.
6. For example, if 100 Watts of Electric Power is delivered to the Load by the Faraday Generator,
an additional >100 Watts of Mechanical Input Power must be supplied to the Generator's Drive
Shaft by the Prime Mover.
7. If 1 MW of Electric Power is delivered to the Load by the Faraday Generator, an additional >1
MW Watts of Mechanical Input Power must be supplied to the Generator's Drive Shaft by the
Prime Mover.
8. Generally speaking the ratio is 2 Watts of Mechanical Input Power to every 1 Watt of Electric
Output Power generated.
9. The increase in Drive Shaft Mechanical Input Power is provided by the Prime Mover and the
Input Energy Source which powers the Prime Mover.
10. In the Heins ReGenX Generator operation the created and Time Delayed Electromagnetic Field
Energy performs Positive Work at infinite efficiency and it increases the Kinetic Energy of the
system.
The Golden Gate Bridge a structural marvel inspired by mother nature.pptx
The Golden Gate Bridge a structural marvel inspired by mother nature.pptxAkankshaRawat75
Ìý
The Golden Gate Bridge is a 6 lane suspension bridge spans the Golden Gate Strait, connecting the city of San Francisco to Marin County, California.
It provides a vital transportation link between the Pacific Ocean and the San Francisco Bay.
decarbonization steel industry rev1.pptx
decarbonization steel industry rev1.pptxgonzalezolabarriaped
Ìý
Webinar Decarbonization steel industryIntroduction to Safety, Health & Environment
Introduction to Safety, Health & Environmentssuserc606c7
Ìý
Introduction to Safety, Health &Environment
Structural QA/QC Inspection in KRP 401600 | Copper Processing Plant-3 (MOF-3)...
Structural QA/QC Inspection in KRP 401600 | Copper Processing Plant-3 (MOF-3)...slayshadow705
Ìý
This presentation provides an in-depth analysis of structural quality control in the KRP 401600 section of the Copper Processing Plant-3 (MOF-3) in Uzbekistan. As a Structural QA/QC Inspector, I have identified critical welding defects, alignment issues, bolting problems, and joint fit-up concerns.
Key topics covered:
✔ Common Structural Defects – Welding porosity, misalignment, bolting errors, and more.
✔ Root Cause Analysis – Understanding why these defects occur.
✔ Corrective & Preventive Actions – Effective solutions to improve quality.
✔ Team Responsibilities – Roles of supervisors, welders, fitters, and QC inspectors.
✔ Inspection & Quality Control Enhancements – Advanced techniques for defect detection.
📌 Applicable Standards: GOST, KMK, SNK – Ensuring compliance with international quality benchmarks.
🚀 This presentation is a must-watch for:
✅ QA/QC Inspectors, Structural Engineers, Welding Inspectors, and Project Managers in the construction & oil & gas industries.
✅ Professionals looking to improve quality control processes in large-scale industrial projects.
📢 Download & share your thoughts! Let's discuss best practices for enhancing structural integrity in industrial projects.
Categories:
Engineering
Construction
Quality Control
Welding Inspection
Project Management
Tags:
#QAQC #StructuralInspection #WeldingDefects #BoltingIssues #ConstructionQuality #Engineering #GOSTStandards #WeldingInspection #QualityControl #ProjectManagement #MOF3 #CopperProcessing #StructuralEngineering #NDT #OilAndGasMathematics behind machine learning INT255 INT255__Unit 3__PPT-1.pptx
Mathematics behind machine learning INT255 INT255__Unit 3__PPT-1.pptxppkmurthy2006
Ìý
Mathematics behind machine learning INT255
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...Thane Heins NOBEL PRIZE WINNING ENERGY RESEARCHER
Ìý
Preface: The ReGenX Generator innovation operates with a US Patented Frequency Dependent Load Current Delay which delays the creation and storage of created Electromagnetic Field Energy around the exterior of the generator coil. The result is the created and Time Delayed Electromagnetic Field Energy performs any magnitude of Positive Electro-Mechanical Work at infinite efficiency on the generator's Rotating Magnetic Field, increasing its Kinetic Energy and increasing the Kinetic Energy of an EV or ICE Vehicle to any magnitude without requiring any Externally Supplied Input Energy. In Electricity Generation applications the ReGenX Generator innovation now allows all electricity to be generated at infinite efficiency requiring zero Input Energy, zero Input Energy Cost, while producing zero Greenhouse Gas Emissions, zero Air Pollution and zero Nuclear Waste during the Electricity Generation Phase. In Electric Motor operation the ReGen-X Quantum Motor now allows any magnitude of Work to be performed with zero Electric Input Energy.
Demonstration Protocol: The demonstration protocol involves three prototypes;
1. Protytpe #1, demonstrates the ReGenX Generator's Load Current Time Delay when compared to the instantaneous Load Current Sine Wave for a Conventional Generator Coil.
2. In the Conventional Faraday Generator operation the created Electromagnetic Field Energy performs Negative Work at infinite efficiency and it reduces the Kinetic Energy of the system.
3. The Magnitude of the Negative Work / System Kinetic Energy Reduction (in Joules) is equal to the Magnitude of the created Electromagnetic Field Energy (also in Joules).
4. When the Conventional Faraday Generator is placed On-Load, Negative Work is performed and the speed of the system decreases according to Lenz's Law of Induction.
5. In order to maintain the System Speed and the Electric Power magnitude to the Loads, additional Input Power must be supplied to the Prime Mover and additional Mechanical Input Power must be supplied to the Generator's Drive Shaft.
6. For example, if 100 Watts of Electric Power is delivered to the Load by the Faraday Generator, an additional >100 Watts of Mechanical Input Power must be supplied to the Generator's Drive Shaft by the Prime Mover.
7. If 1 MW of Electric Power is delivered to the Load by the Faraday Generator, an additional >1 MW Watts of Mechanical Input Power must be supplied to the Generator's Drive Shaft by the Prime Mover.
8. Generally speaking the ratio is 2 Watts of Mechanical Input Power to every 1 Watt of Electric Output Power generated.
9. The increase in Drive Shaft Mechanical Input Power is provided by the Prime Mover and the Input Energy Source which powers the Prime Mover.
10. In the Heins ReGenX Generator operation the created and Time Delayed Electromagnetic Field Energy performs Positive Work at infinite efficiency and it increases the Kinetic Energy of the system.G8 mini project for alcohol detection and engine lock system with GPS tracki...
G8 mini project for alcohol detection and engine lock system with GPS tracki...sahillanjewar294
Ìý
b.tech final year projects report for cseTurbocor Product and Technology Review.pdf
Turbocor Product and Technology Review.pdfTotok Sulistiyanto
Ìý
High Efficiency Chiller System in HVACWireless-Charger presentation for seminar .pdf
Wireless-Charger presentation for seminar .pdfAbhinandanMishra30
Ìý
Wireless technology used in chargerEnv and Water Supply Engg._Dr. Hasan.pdf
Env and Water Supply Engg._Dr. Hasan.pdfMahmudHasan747870
Ìý
Core course, namely Environment and Water Supply Engineering. Full lecture notes are in book format for the BSc in Civil Engineering program. Optimization of Cumulative Energy, Exergy Consumption and Environmental Life ...
Optimization of Cumulative Energy, Exergy Consumption and Environmental Life ...J. Agricultural Machinery
Ìý
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...Thane Heins NOBEL PRIZE WINNING ENERGY RESEARCHER
Ìý
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...
US Patented ReGenX Generator, ReGen-X Quatum Motor EV Regenerative Accelerati...Thane Heins NOBEL PRIZE WINNING ENERGY RESEARCHER
Ìý
unit II_2_i.pptx
- 1. Searching methods • is an operation or a technique that helps finds the place of a given element or value in the list. • are designed to check for an element or retrieve an element from any data structure where it is stored. • is said to be successful or unsuccessful depending upon whether the element that is being searched is found or not. • standard techniques • Sequential Search • Interval Search

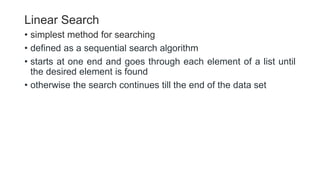

- 2. Linear Search • simplest method for searching • defined as a sequential search algorithm • starts at one end and goes through each element of a list until the desired element is found • otherwise the search continues till the end of the data set
- 3. Linear Search • Given an array arr[] of N elements, the task is to write a function to search a given element x in arr[]. • Iterate from 0 to N-1 and compare the value of every index with x if they match return index.
- 4. Steps for Linear Search • Start from the leftmost element of arr[] and one by one compare x with each element of arr[] • If x matches with an element, return the index. • If x doesn’t match with any of the elements, return -1.
- 5. Algorithm for Linear Search • algorithm Seqnl_Search(list, item) • Pre: list != ; • Post: return the index of the item if found, otherwise: 1 • index <- fi • while index < list.Cnt and list[index] != item //cnt: counter variable • index <- index + 1 • end while • if index < list.Cnt and list[index] = item • return index • end if • return: 1

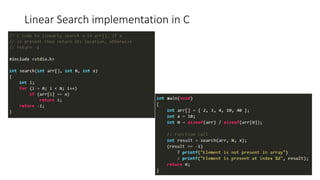

- 6. Linear Search implementation in C

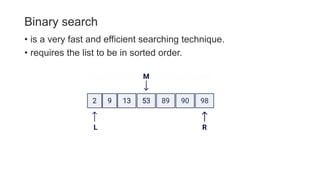

- 7. Binary search • is a very fast and efficient searching technique. • requires the list to be in sorted order.

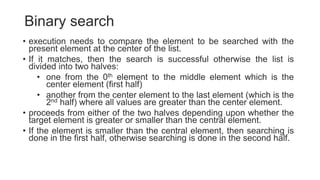

- 8. Binary search • execution needs to compare the element to be searched with the present element at the center of the list. • If it matches, then the search is successful otherwise the list is divided into two halves: • one from the 0th element to the middle element which is the center element (first half) • another from the center element to the last element (which is the 2nd half) where all values are greater than the center element. • proceeds from either of the two halves depending upon whether the target element is greater or smaller than the central element. • If the element is smaller than the central element, then searching is done in the first half, otherwise searching is done in the second half.

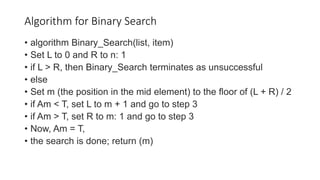

- 9. Algorithm for Binary Search • algorithm Binary_Search(list, item) • Set L to 0 and R to n: 1 • if L > R, then Binary_Search terminates as unsuccessful • else • Set m (the position in the mid element) to the floor of (L + R) / 2 • if Am < T, set L to m + 1 and go to step 3 • if Am > T, set R to m: 1 and go to step 3 • Now, Am = T, • the search is done; return (m)

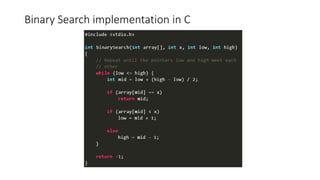

- 10. Binary Search implementation in C
- 11. Linear Search and Binary Search

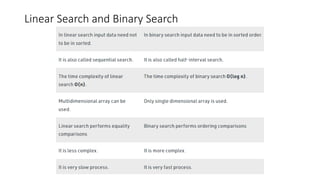

- 12. Linear Search and Binary Search
