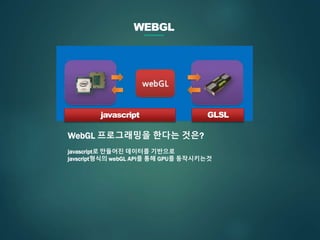

WebGL 프로그래밍을 한다는 것은?
javascript로 만들어진 데이터를 기반으로
javscript형식의 webGL API를 통해 GPU를 동작시키는것
javascript GLSL

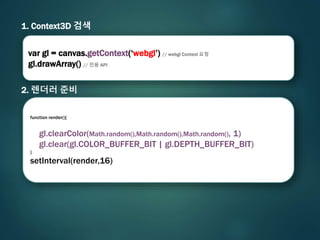

1. Context3D 검색
2. 렌더러 준비
var gl = canvas.getContext(‘webgl’) // webgl Context 요청
gl.drawArray() // 전용 API

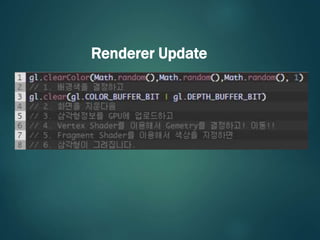

function render(){
gl.clearColor(Math.random(),Math.random(),Math.random(), 1)
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT)
}
setInterval(render,16)

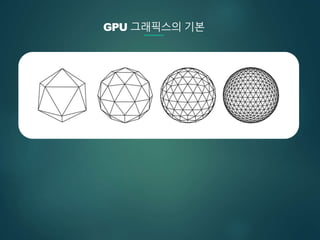

GPU 그래픽스의 기본

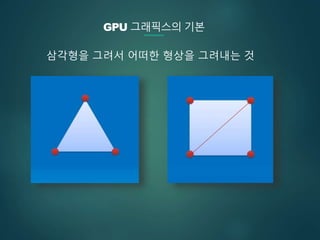

삼각형을 그려서 어떠한 형상을 그려내는 것

문제는
CPU에 있는 데이터를
GPU에 어떻게 전달/실행 시킬 것인가

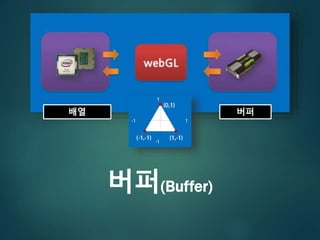

버퍼(Buffer)
쉐이더(��󲹻��)
프로그램(Program)
유니폼(Uniform)

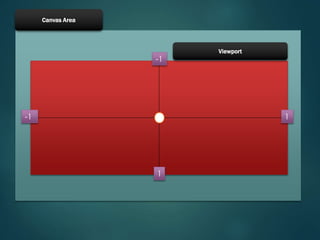

Viewport
Canvas Area
-1 1
-1
1

Bs webgl소모임001 uniform버전

HOW TO..

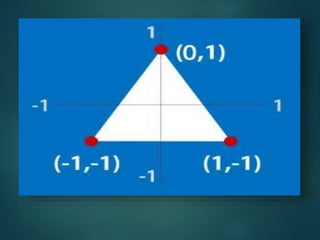

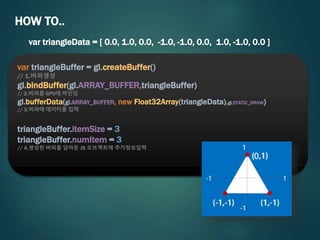

var triangleData = [ 0.0, 1.0, 0.0, -1.0, -1.0, 0.0, 1.0, -1.0, 0.0 ]

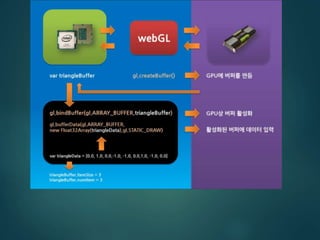

var triangleBuffer = gl.createBuffer()
// 1.버퍼생성
gl.bindBuffer(gl.ARRAY_BUFFER,triangleBuffer)
// 2.버퍼를 GPU에 바인딩
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(triangleData),gl.STATIC_DRAW)
// 3.버퍼에 데이터를 입력
triangleBuffer.itemSize = 3
triangleBuffer.numItem = 3
// 4.생성된 버퍼를 담아둔 JS 오브젝트에 추가정보입력

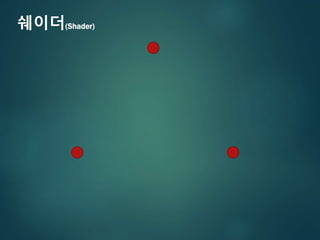

쉐이더(��󲹻��)

쉐이더(��󲹻��)
Geometry

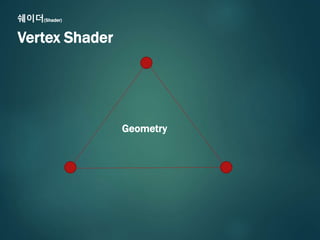

Vertex Shader

쉐이더(��󲹻��)

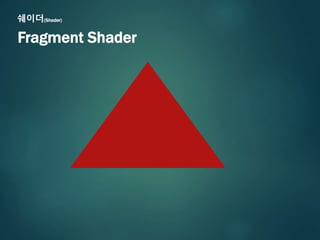

Fragment Shader

Vertex Shader Fragment Shader

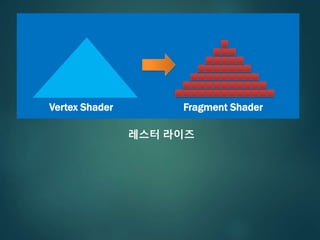

레스터 라이즈

HOW TO..

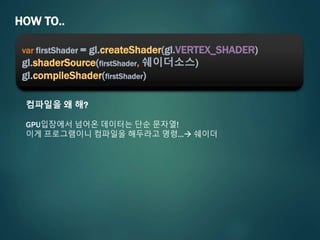

var firstShader = gl.createShader(gl.VERTEX_SHADER)
gl.shaderSource(firstShader, 쉐이더소스)
gl.compileShader(firstShader)
컴파일을 왜 해?
GPU입장에서 넘어온 데이터는 단순 문자열!
이게 프로그램이니 컴파일을 해두라고 명령… 쉐이더

HOW TO..
var vertexShaderStr = ""+
"attribute vec3 aVertexPosition;" +
"void main(void) {" +
" gl_Position = vec4(aVertexPosition, 1.0);" +
"}“

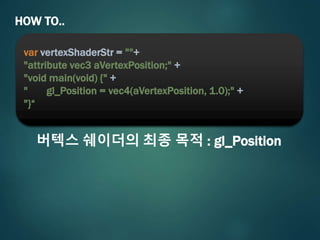

버텍스 쉐이더의 최종 목적 : gl_Position

HOW TO..

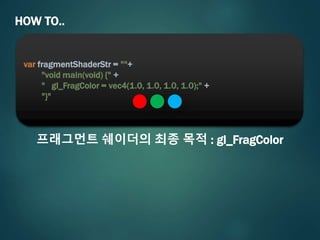

var fragmentShaderStr = ""+
" gl_FragColor = vec4(1.0, 1.0, 1.0, 1.0);" +
"}"
프래그먼트 쉐이더의 최종 목적 : gl_FragColor

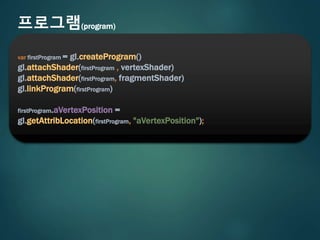

프로그램(program)
var firstProgram = gl.createProgram()
gl.attachShader(firstProgram , vertexShader)
gl.attachShader(firstProgram, fragmentShader)
gl.linkProgram(firstProgram)
firstProgram.aVertexPosition =
gl.getAttribLocation(firstProgram, "aVertexPosition");

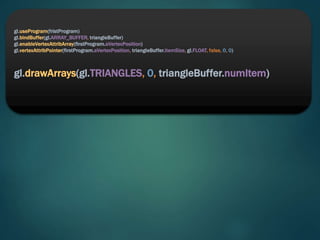

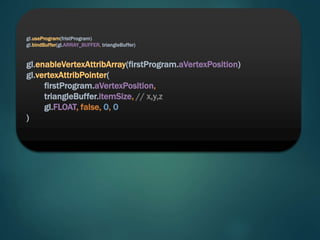

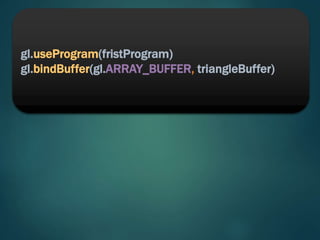

gl.useProgram(fristProgram)
gl.bindBuffer(gl.ARRAY_BUFFER, triangleBuffer)

gl.enableVertexAttribArray(firstProgram.aVertexPosition)
gl.vertexAttribPointer(
firstProgram.aVertexPosition,
triangleBuffer.itemSize, // x,y,z
gl.FLOAT, false, 0, 0
)

gl.enableVertexAttribArray(firstProgram.aVertexPosition)
gl.vertexAttribPointer(firstProgram.aVertexPosition, triangleBuffer.itemSize, gl.FLOAT, false, 0, 0)
gl.drawArrays(gl.TRIANGLES, 0, triangleBuffer.numItem)

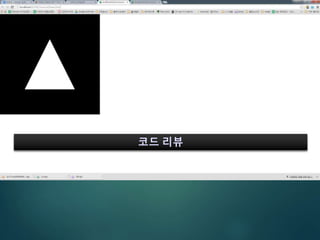

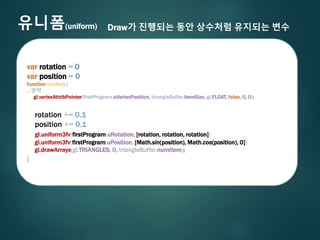

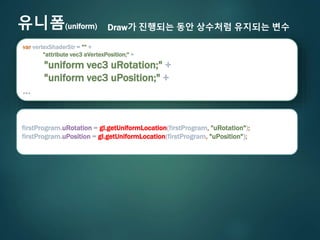

유니폼(uniform) Draw가 진행되는 동안 상수처럼 유지되는 변수
var vertexShaderStr = "" +
"attribute vec3 aVertexPosition;" +
"uniform vec3 uRotation;" +
"uniform vec3 uPosition;" +
…
firstProgram.uRotation = gl.getUniformLocation(firstProgram, "uRotation");
firstProgram.uPosition = gl.getUniformLocation(firstProgram, "uPosition");

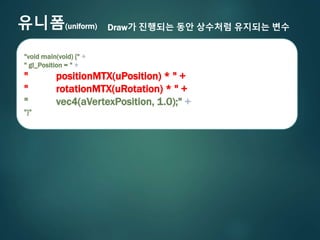

" gl_Position = " +
" positionMTX(uPosition) * " +
" rotationMTX(uRotation) * " +
" vec4(aVertexPosition, 1.0);" +
"}"

var rotation = 0
var position = 0
function render() {
.. 생략
gl.vertexAttribPointer(firstProgram.aVertexPosition, triangleBuffer.itemSize, gl.FLOAT, false, 0, 0);
rotation += 0.1
position += 0.1
gl.uniform3fv(firstProgram.uRotation, [rotation, rotation, rotation])
gl.uniform3fv(firstProgram.uPosition, [Math.sin(position), Math.cos(position), 0])
gl.drawArrays(gl.TRIANGLES, 0, triangleBuffer.numItem);
}

gl.uniform3fv(firstProgram.uRotation, [rotation, rotation, rotation])
gl.uniform3fv(firstProgram.uPosition, [Math.sin(position), Math.cos(position), 0])

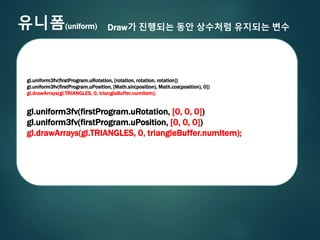

gl.uniform3fv(firstProgram.uRotation, [0, 0, 0])
gl.uniform3fv(firstProgram.uPosition, [0, 0, 0])

End
